Q.2) In the circuit shown, V = 600 volts, initial capacitor voltage is zero, L = 20 µH, C = 50µF and the current through

Post by answerhappygod »

Q 2 In The Circuit Shown V 600 Volts Initial Capacitor Voltage Is Zero L 20 Uh C 50uf And The Current Through 1
Q 2 In The Circuit Shown V 600 Volts Initial Capacitor Voltage Is Zero L 20 Uh C 50uf And The Current Through 1 (16.08 KiB) Viewed 34 times

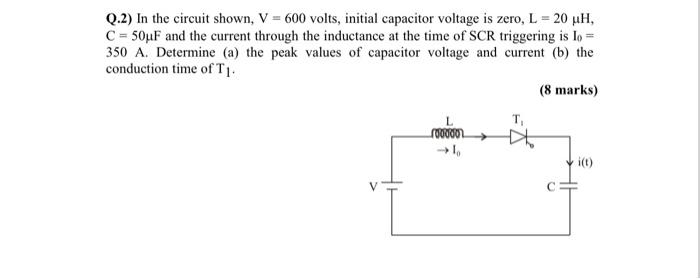

Q.2) In the circuit shown, V = 600 volts, initial capacitor voltage is zero, L = 20 µH, C = 50µF and the current through the inductance at the time of SCR triggering is lo = 350 A. Determine (a) the peak values of capacitor voltage and current (b) the conduction time of T1. (8 marks) L fooddo i(t)
