Two Conductors With Concentric Radius R1 And R2 Are Placed In Such A Way That Their Center Is At The Origin While There 1 (22.7 KiB) Viewed 43 times
answer should be one of this
Two Conductors With Concentric Radius R1 And R2 Are Placed In Such A Way That Their Center Is At The Origin While There 2 (28.1 KiB) Viewed 43 times

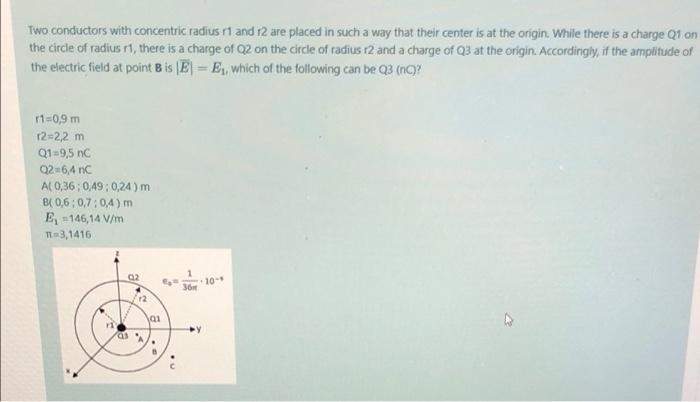

Two conductors with concentric radius r1 and r2 are placed in such a way that their center is at the origin. While there is a charge Q1 on the circle of radius r1, there is a charge of Q2 on the circle of radius r2 and a charge of Q3 at the origin. Accordingly, if the amplitude of the electric field at point B is E=E₁, which of the following can be Q3 (nC)? r1=0,9 m 12=2,2 m Q1-9,5 nC Q2=6,4nC A(0,36; 0,49; 0,24) m B(0,6; 0,7; 0,4) m E₁-146,14 V/m T 3,1416 as a1 36m -10- y

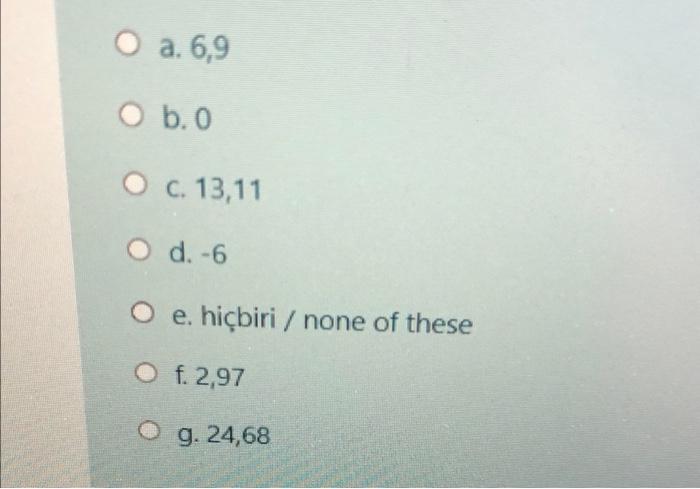

O a. 6,9 O b.0 O c. 13,11 O d. -6 e. hiçbiri / none of these O f. 2,97 g. 24,68
