Two conductors with concentric radii r1 and r2 are placed in such a way that their circle centers are the origin. While

[answerhappygod]

Two Conductors With Concentric Radii R1 And R2 Are Placed In Such A Way That Their Circle Centers Are The Origin While 1 (144.7 KiB) Viewed 45 times

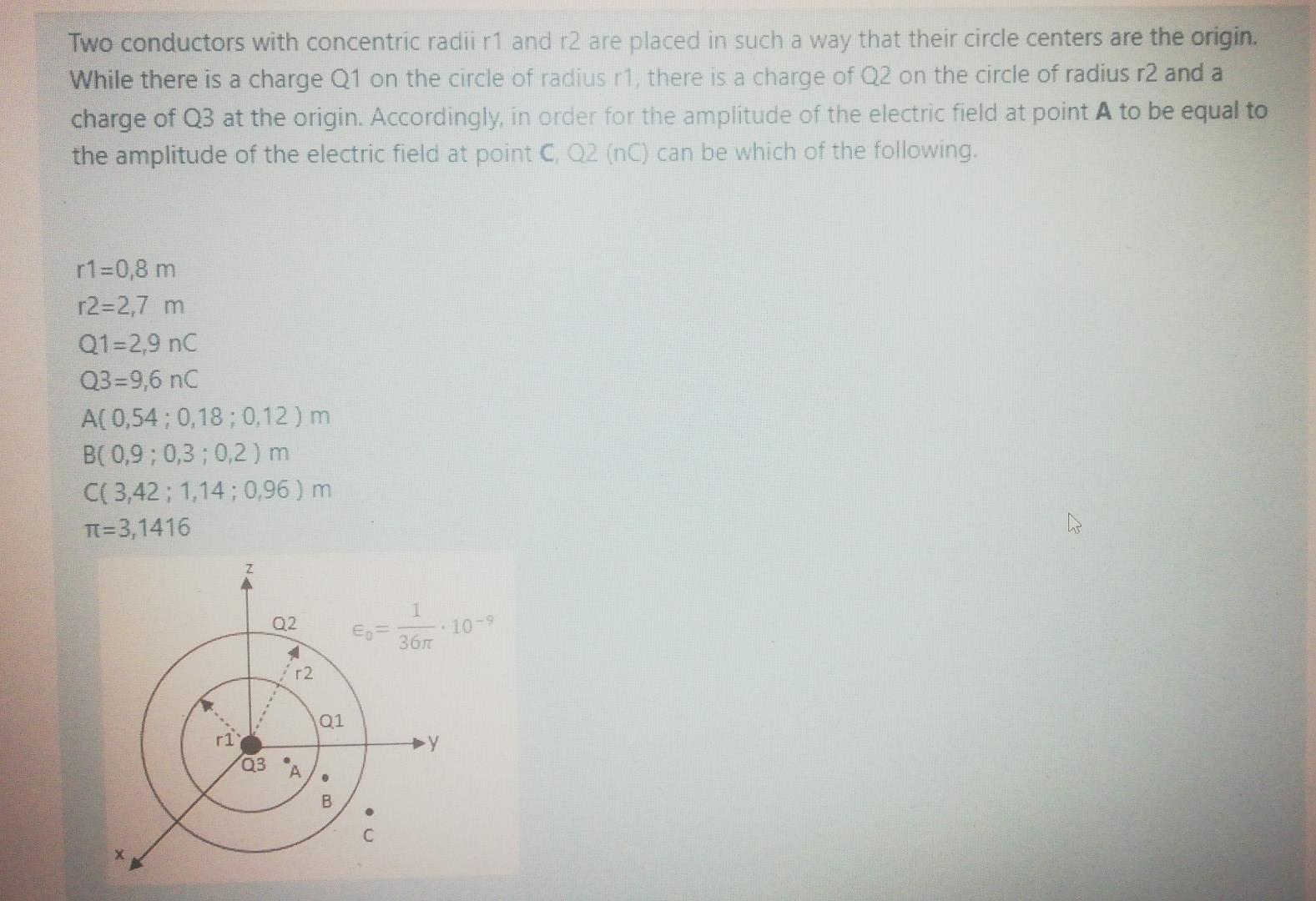

Two conductors with concentric radii r1 and r2 are placed in such a way that their circle centers are the origin. While there is a charge Q1 on the circle of radius r1, there is a charge of Q2 on the circle of radius r2 and a charge of Q3 at the origin. Accordingly, in order for the amplitude of the electric field at point A to be equal to the amplitude of the electric field at point C, Q2 (nC) can be which of the following. r1=0,8 m r2=2,7 m Q1=2,9 nC Q3=9,6 nC A(0,54; 0,18; 0,12) m B(0,9; 0,3; 0,2) m C(3,42; 1,14; 0,96 ) m π = 3,1416 Q2 V -... r1 Q3 34 r2 A Q1 ● B Eo= C 1 36π 10-9
