4. As shown in the figure, a flat capacitor is composed of two layers of non ideal medium. Ignoring the edge effect, und

Post by answerhappygod »

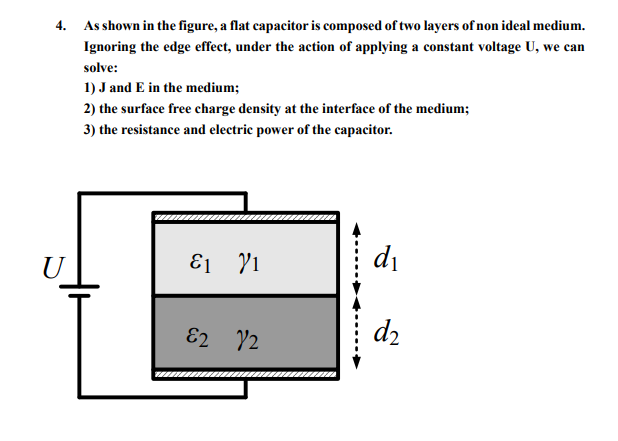

4 As Shown In The Figure A Flat Capacitor Is Composed Of Two Layers Of Non Ideal Medium Ignoring The Edge Effect Und 1
4 As Shown In The Figure A Flat Capacitor Is Composed Of Two Layers Of Non Ideal Medium Ignoring The Edge Effect Und 1 (40.48 KiB) Viewed 35 times
4. As shown in the figure, a flat capacitor is composed of two layers of non ideal medium. Ignoring the edge effect, under the action of applying a constant voltage U, we can solve: 1) J and E in the medium; 2) the surface free charge density at the interface of the medium; 3) the resistance and electric power of the capacitor. E1 71 d₁ E2 1/2 U d₂
