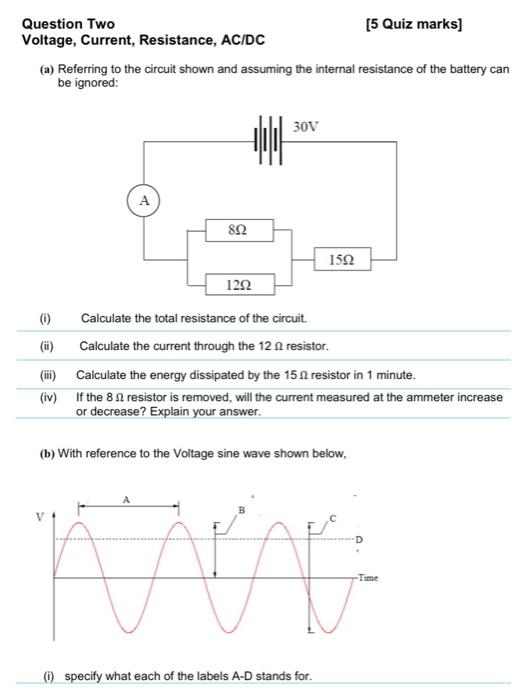

Question Two [5 Quiz marks] Voltage, Current, Resistance, AC/DC (a) Referring to the circuit shown and assuming the internal resistance of the battery can be ignored: 30V A 892 1292 (i) Calculate the total resistance of the circuit. (ii) Calculate the current through the 12 resistor. (iii) Calculate the energy dissipated by the 15 resistor in 1 minute. (iv) If the 8 resistor is removed, will the current measured at the ammeter increase or decrease? Explain your answer. (b) With reference to the Voltage sine wave shown below, N (i) specify what each of the labels A-D stands for. |||| 1502 -Time
