8. Draw the output waveform for the circuit shown below given Vin(pp)=20V. Write the name of the circuit. D1 and D2 are

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

8. Draw the output waveform for the circuit shown below given Vin(pp)=20V. Write the name of the circuit. D1 and D2 are

Post by answerhappygod »

8 Draw The Output Waveform For The Circuit Shown Below Given Vin Pp 20v Write The Name Of The Circuit D1 And D2 Are 1
8 Draw The Output Waveform For The Circuit Shown Below Given Vin Pp 20v Write The Name Of The Circuit D1 And D2 Are 1 (21.14 KiB) Viewed 35 times

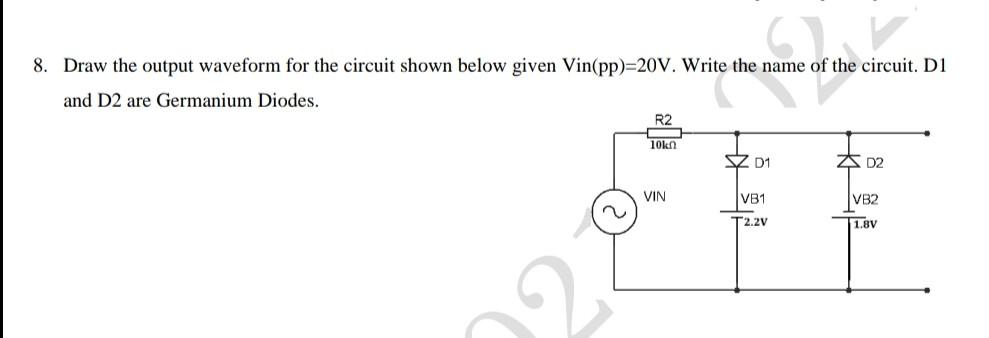

8. Draw the output waveform for the circuit shown below given Vin(pp)=20V. Write the name of the circuit. D1 and D2 are Germanium Diodes. R2 10kn Z D1 ZD2 VB1 VB2 T2.2V 1.8V VIN
