Table 3: Amplifier device parameters and circuit components hie = 1.4 km; hfe = 90; hoe = 10 x 10-7; Cc = 6 pF; Cp = 46

[answerhappygod]

Table 3 Amplifier Device Parameters And Circuit Components Hie 1 4 Km Hfe 90 Hoe 10 X 10 7 Cc 6 Pf Cp 46 1 (124.47 KiB) Viewed 21 times

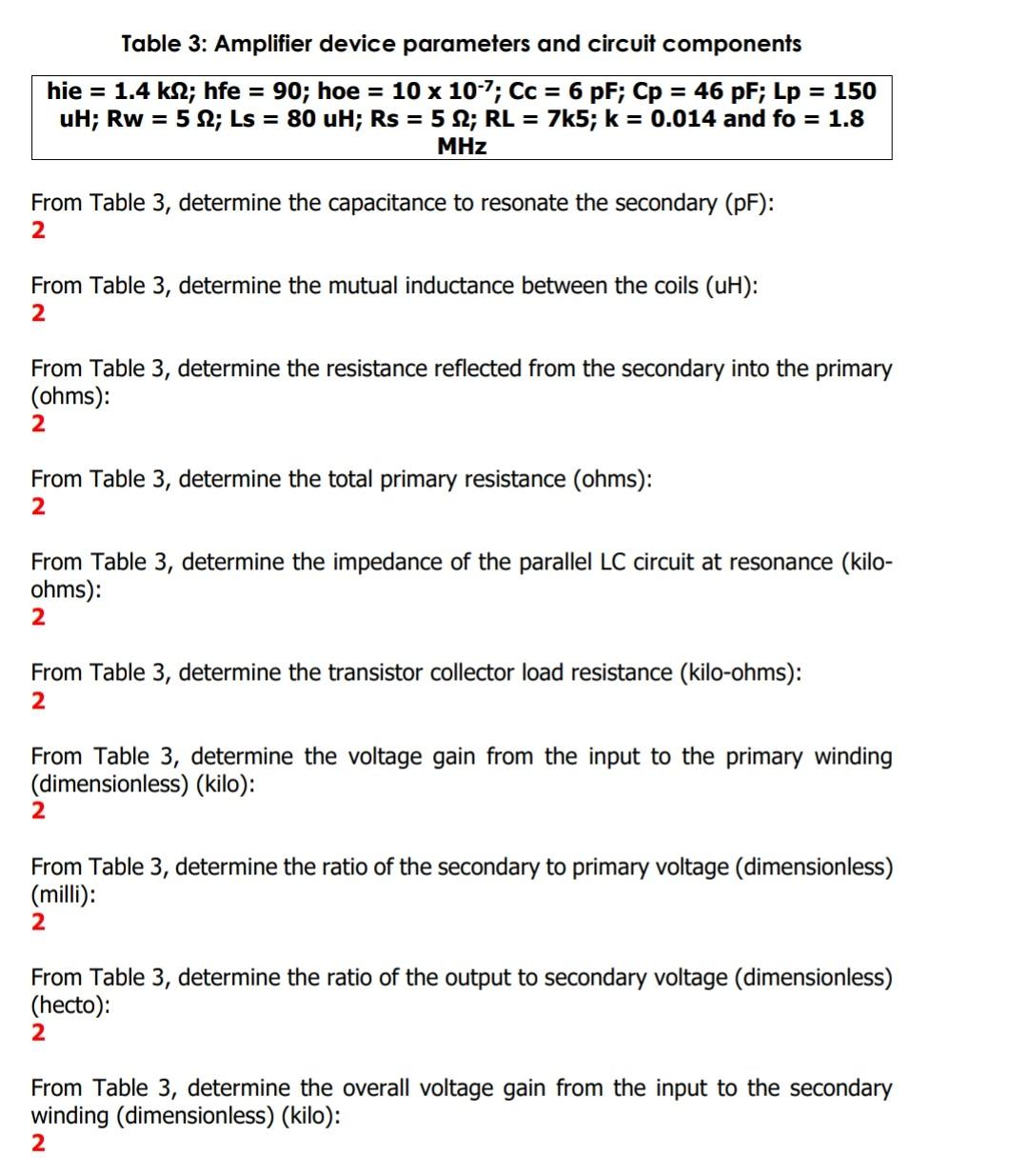

Table 3: Amplifier device parameters and circuit components hie = 1.4 km; hfe = 90; hoe = 10 x 10-7; Cc = 6 pF; Cp = 46 pF; Lp = 150 uH; Rw = 5; Ls = 80 uH; Rs = 5 22; RL = 7k5; k = 0.014 and fo = 1.8 MHz From Table 3, determine the capacitance to resonate the secondary (pF): 2 From Table 3, determine the mutual inductance between the coils (uH): 2 From Table 3, determine the resistance reflected from the secondary into the primary (ohms): 2 From Table 3, determine the total primary resistance (ohms): 2 From Table 3, determine the impedance of the parallel LC circuit at resonance (kilo- ohms): 2 From Table 3, determine the transistor collector load resistance (kilo-ohms): 2 From Table 3, determine the voltage gain from the input to the primary winding (dimensionless) (kilo): 2 From Table 3, determine the ratio of the secondary to primary voltage (dimensionless) (milli): 2 From Table 3, determine the ratio of the output to secondary voltage (dimensionless) (hecto): 2 From Table 3, determine the overall voltage gain from the input to the secondary winding (dimensionless) (kilo): 2
