c) Consider the three-phase, balanced, wye-connected circuit in Figure 2. In this circuit, the magnitude of the line-lin

Post by answerhappygod »

C Consider The Three Phase Balanced Wye Connected Circuit In Figure 2 In This Circuit The Magnitude Of The Line Lin 1
C Consider The Three Phase Balanced Wye Connected Circuit In Figure 2 In This Circuit The Magnitude Of The Line Lin 1 (74.49 KiB) Viewed 46 times

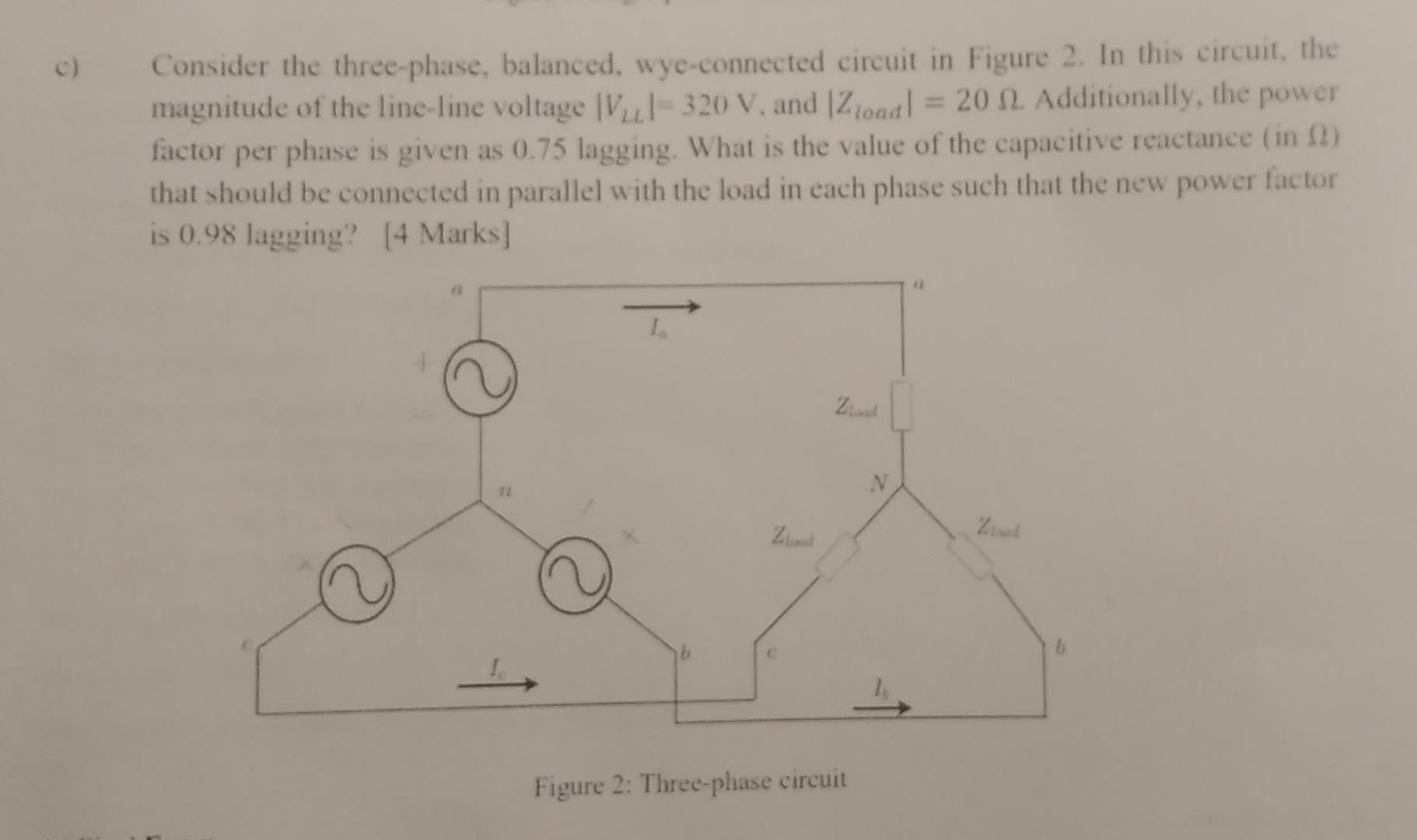

c) Consider the three-phase, balanced, wye-connected circuit in Figure 2. In this circuit, the magnitude of the line-line voltage V₁-320 V. and |Zload] = 20 2. Additionally, the power factor per phase is given as 0.75 lagging. What is the value of the capacitive reactance (in (2) that should be connected in parallel with the load in each phase such that the new power factor is 0.98 lagging? [4 Marks] 1. Zaad Figure 2: Three-phase circuit
