P D1 D34 R DA D₂ N A single-phase full-width diode rectifier, as shown above, is supplied with an AC voltage of 230 Vrms

Post by answerhappygod »

P D1 D34 R Da D N A Single Phase Full Width Diode Rectifier As Shown Above Is Supplied With An Ac Voltage Of 230 Vrms 1
P D1 D34 R Da D N A Single Phase Full Width Diode Rectifier As Shown Above Is Supplied With An Ac Voltage Of 230 Vrms 1 (31.21 KiB) Viewed 30 times

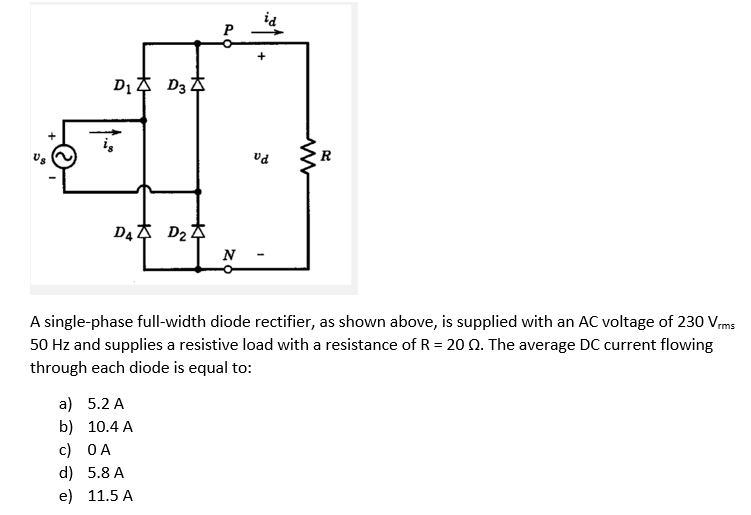

P D1 D34 R DA D₂ N A single-phase full-width diode rectifier, as shown above, is supplied with an AC voltage of 230 Vrms 50 Hz and supplies a resistive load with a resistance of R = 20 02. The average DC current flowing through each diode is equal to: a) 5.2 A b) c) O A d) 5.8 A e) 11.5 A 10.4 A vd
