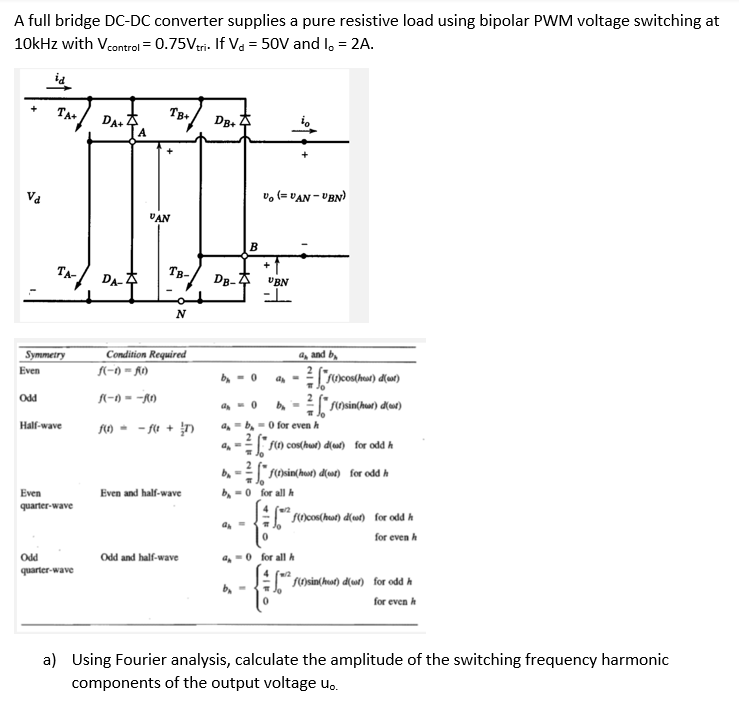

A full bridge DC-DC converter supplies a pure resistive load using bipolar PWM voltage switching at 10kHz with Vcontrol
