The circuit diagram below shows a DC-DC converter. Assume that the inverter operates in continuous line mode (CCM), i.e.
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The circuit diagram below shows a DC-DC converter. Assume that the inverter operates in continuous line mode (CCM), i.e.

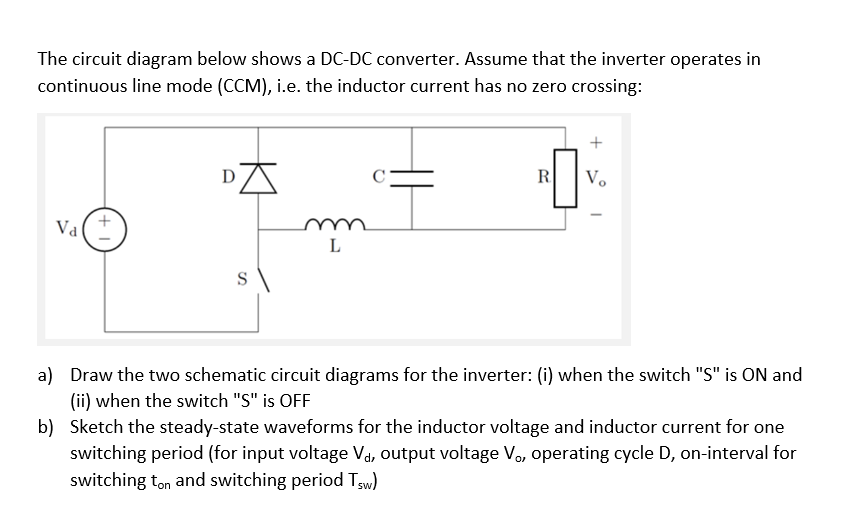

The circuit diagram below shows a DC-DC converter. Assume that the inverter operates in continuous line mode (CCM), i.e. the inductor current has no zero crossing: + R Vo Val L a) Draw the two schematic circuit diagrams for the inverter: (i) when the switch "S" is ON and (ii) when the switch "S" is OFF b) Sketch the steady-state waveforms for the inductor voltage and inductor current for one switching period (for input voltage V₁, output voltage V₁, operating cycle D, on-interval for switching ton and switching period Tsw)
