A buck converter has the following components: V₁ = 20 V, L = 10 mH, C = 20 μF, R = 20 £2, switching frequency f= 20 kHz
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A buck converter has the following components: V₁ = 20 V, L = 10 mH, C = 20 μF, R = 20 £2, switching frequency f= 20 kHz

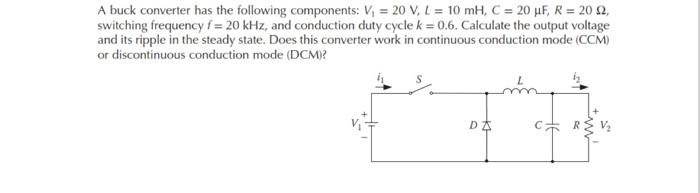

A buck converter has the following components: V₁ = 20 V, L = 10 mH, C = 20 μF, R = 20 £2, switching frequency f= 20 kHz, and conduction duty cycle k = 0.6. Calculate the output voltage and its ripple in the steady state. Does this converter work in continuous conduction mode (CCM) or discontinuous conduction mode (DCM)? DE
