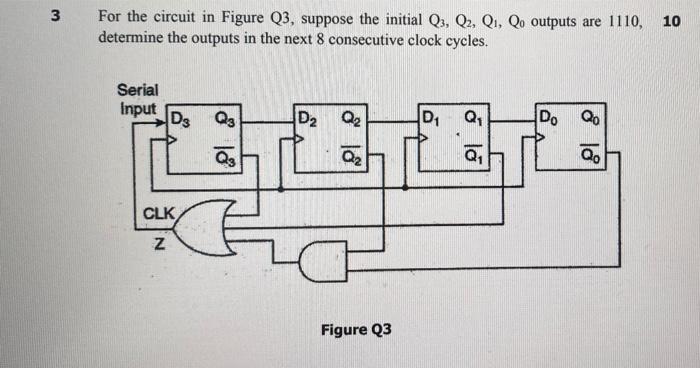

3 10 For the circuit in Figure Q3, suppose the initial Q3, Q2, Q1, Qo outputs are 1110, determine the outputs in the next 8 consecutive clock cycles. Serial Input D3 Q3 D₂ Q₂ D₁ Do Qo Q₂ Qo Figure Q3 CLK N 88 ở lớ Q₁ 8
