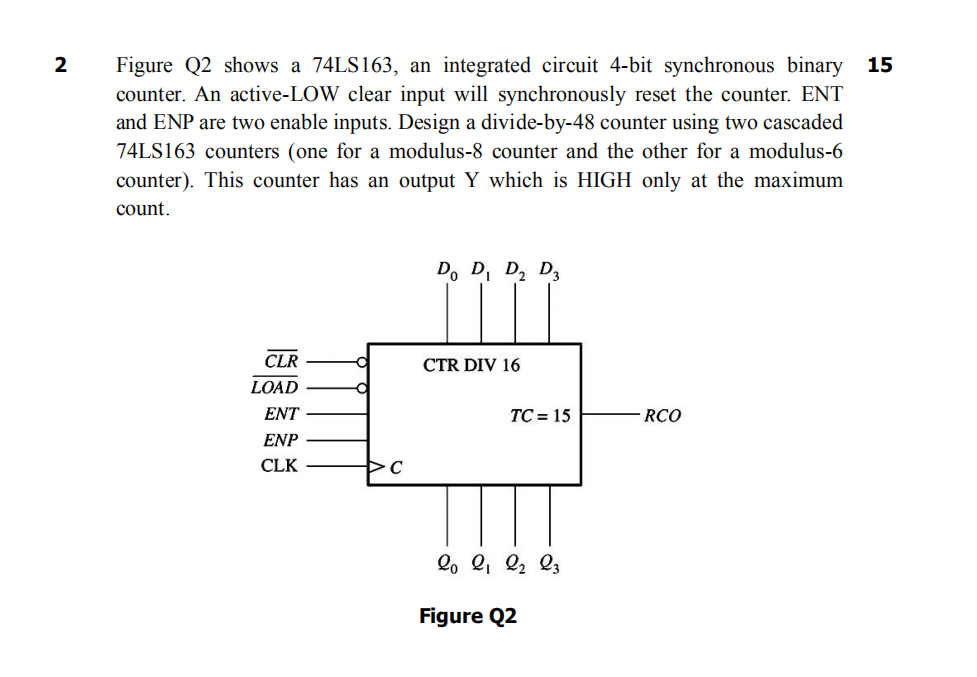

2 Figure Q2 shows a 74LS163, an integrated circuit 4-bit synchronous binary 15 counter. An active-LOW clear input will synchronously reset the counter. ENT and ENP are two enable inputs. Design a divide-by-48 counter using two cascaded 74LS163 counters (one for a modulus-8 counter and the other for a modulus-6 counter). This counter has an output Y which is HIGH only at the maximum count. Do D₁ D₂ D₂ CLR LOAD ENT RCO ENP CLK C CTR DIV 16 TC = 15 Lo Q₁ Q₂ Q3 Figure Q2
