Unit 5: [20 marks: Engineering Science] Table 3: Amplifier device parameters and circuit components hie=1.4 k; hfe= 90;

[answerhappygod]

Unit 5 20 Marks Engineering Science Table 3 Amplifier Device Parameters And Circuit Components Hie 1 4 K Hfe 90 1 (56.23 KiB) Viewed 15 times

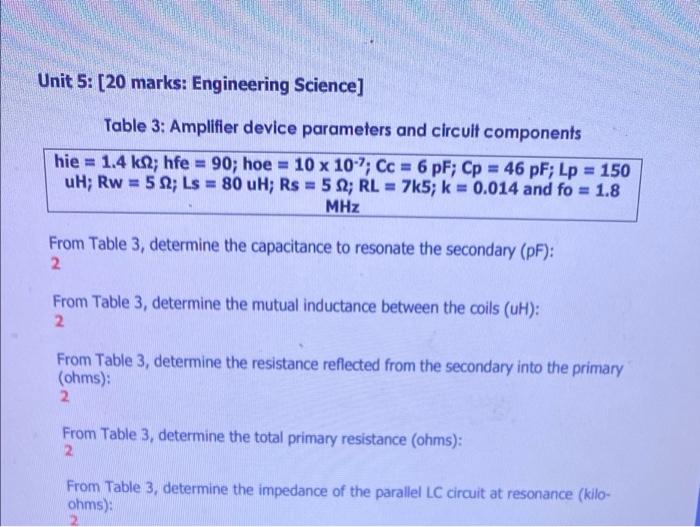

Unit 5: [20 marks: Engineering Science] Table 3: Amplifier device parameters and circuit components hie=1.4 k; hfe= 90; hoe = 10 x 10-7; Cc = 6 pF; Cp = 46 pF; Lp = 150 uH; Rw = 52; Ls = 80 uH; Rs = 52; RL = 7k5; k= 0.014 and fo = 1.8 MHz From Table 3, determine the capacitance to resonate the secondary (PF): 2 From Table 3, determine the mutual inductance between the coils (UH): 2 From Table 3, determine the resistance reflected from the secondary into the primary (ohms): 2 From Table 3, determine the total primary resistance (ohms): 2 From Table 3, determine the impedance of the parallel LC circuit at resonance (kilo- ohms):
