1. Consider the Boolean function: F(x,y,z) = xyz + x2 + y2 Implement the function using a 3-to-8 Active-Low Decoder and

[answerhappygod]

1 Consider The Boolean Function F X Y Z Xyz X2 Y2 Implement The Function Using A 3 To 8 Active Low Decoder And 1 (12.77 KiB) Viewed 10 times

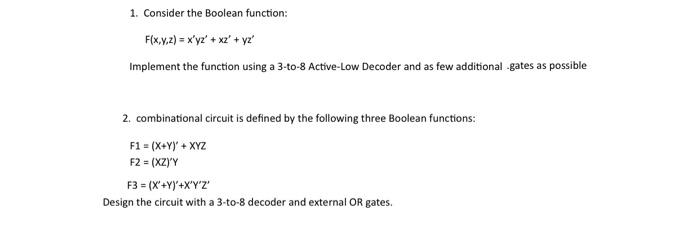

1. Consider the Boolean function: F(x,y,z) = xyz + x2 + y2 Implement the function using a 3-to-8 Active-Low Decoder and as few additional -gates as possible 2. combinational circuit is defined by the following three Boolean functions: F1 = (X+Y)' + XYZ F2 = (XZ)'Y F3 = (X+Y)'+X'Y'Z' Design the circuit with a 3-to-8 decoder and external OR gates.
