For the sequential circuit in the following figure, find: 1- The state table (A = 0, B = 1). 2- The state diagram. 3- A

Post by answerhappygod »

For The Sequential Circuit In The Following Figure Find 1 The State Table A 0 B 1 2 The State Diagram 3 A 1
For The Sequential Circuit In The Following Figure Find 1 The State Table A 0 B 1 2 The State Diagram 3 A 1 (15.46 KiB) Viewed 22 times

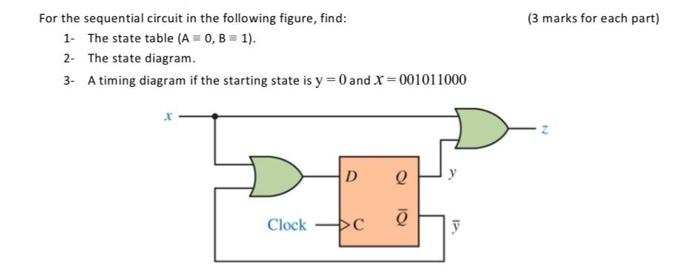

For the sequential circuit in the following figure, find: 1- The state table (A = 0, B = 1). 2- The state diagram. 3- A timing diagram if the starting state is y=0 and X=001011000 x D Q ē Clock с y (3 marks for each part)
