Question 1 The three main ways of specifying the function of a combinational logic circuit are: Boolean Expression, Trut

[answerhappygod]

Question 1 The Three Main Ways Of Specifying The Function Of A Combinational Logic Circuit Are Boolean Expression Trut 1 (40.5 KiB) Viewed 15 times

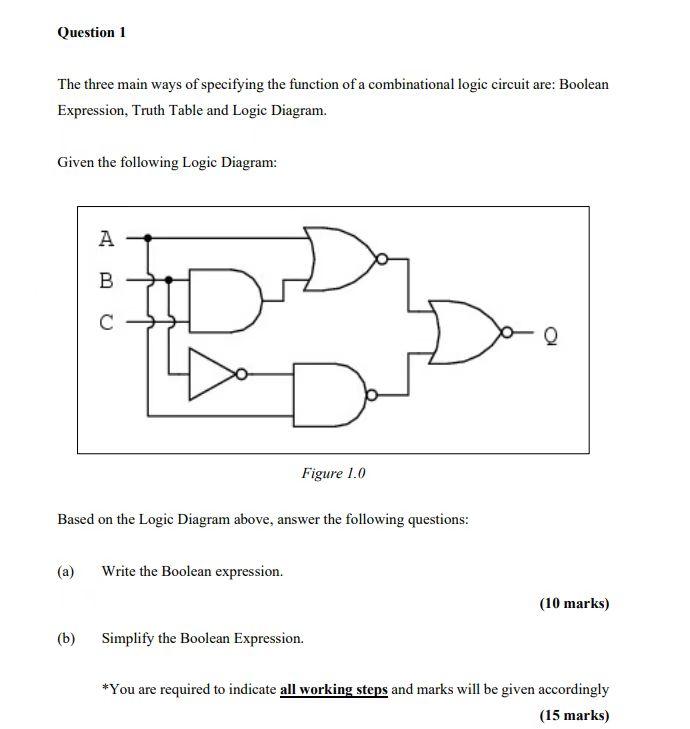

Question 1 The three main ways of specifying the function of a combinational logic circuit are: Boolean Expression, Truth Table and Logic Diagram. Given the following Logic Diagram: A B C Do D Figure 1.0 Based on the Logic Diagram above, answer the following questions: (a) Write the Boolean expression. (10 marks) (b) Simplify the Boolean Expression. *You are required to indicate all working steps and marks will be given accordingly (15 marks) Q
