Use the Boolean function, F(X,Y,Z)=E(m3,m5,m6,m7) where each minterm=1. [5 marks, via hand writing solution steps] 1- Co

[answerhappygod]

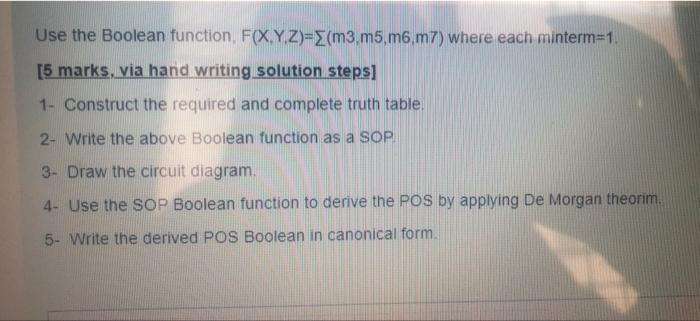

Use The Boolean Function F X Y Z E M3 M5 M6 M7 Where Each Minterm 1 5 Marks Via Hand Writing Solution Steps 1 Co 1 (35.95 KiB) Viewed 10 times

Use the Boolean function, F(X,Y,Z)=E(m3,m5,m6,m7) where each minterm=1. [5 marks, via hand writing solution steps] 1- Construct the required and complete truth table. 2- Write the above Boolean function as a SOP 3- Draw the circuit diagram. 4- Use the SOP Boolean function to derive the POS by applying De Morgan theorim. 5- Write the derived POS Boolean in canonical form.
