- In Given The Boolean Function F1 X Y W Z 0 1 2 3 5 7 11 12 14 15 5 Marks Via Hand Writing Solution Steps 1 1 (37.02 KiB) Viewed 30 times
in Given the Boolean function: F1(X, Y, W, Z) = (0,1,2,3,5,7,11,12,14,15) [5 marks, via hand writing solution steps] 1.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
in Given the Boolean function: F1(X, Y, W, Z) = (0,1,2,3,5,7,11,12,14,15) [5 marks, via hand writing solution steps] 1.

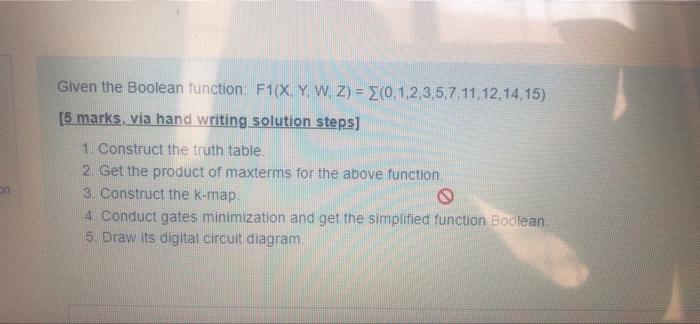

in Given the Boolean function: F1(X, Y, W, Z) = (0,1,2,3,5,7,11,12,14,15) [5 marks, via hand writing solution steps] 1. Construct the truth table. 2. Get the product of maxterms for the above function. 3. Construct the k-map. 4. Conduct gates minimization and get the simplified function Boolean 5. Draw its digital circuit diagram.
