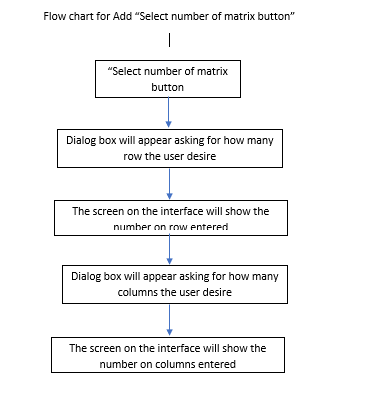

- Flow Chart For Add Select Number Of Matrix Button I Select Number Of Matrix Button Dialog Box Will Appear Asking For 1 (9.75 KiB) Viewed 12 times
Flow chart for "Enter Data Button" Enter Data button Dialog box will appear requesting for user input data Data Entered will display on the table
Flow chart for "Save button" Save button Dialog box will appear asking for the variable name the user desire for storing the data The variable name will appear on the screen interface with the matrix
Flow chart for "Clear Button" Clear button A dialog box will appear to confirm if the user really wants to erase the data Yes The stored data will be cleared No The command will be terminated
Flow chart for "Matrix Solver Button" Matrix Solver A dialog box will appear asking for the script the user desired for the arithmetic operation The result will be printed on the table Flow chart for "Determinants Button" Determinants button A dialog box will appear asking for the variable name to undergo the determinant the operation The result will be printed to the interface screen
Flow chart for "Upper and lower triangular matrix button Upper and lower triangular matrix button A dialog box will appear asking for what triangular matrix the user desire A dialog box will appear asking for what variable name the user desire to undergo upper triangular ma The result will be printed to the interface screen A dialog box will appear asking for what variable name the user desire to undergo the lower triangular matrix The result will be printed to the interface screen Flow chart for "Diagonal coefficient button" Diagonal coefficient button A dialog box will appear asking for the variable name to undergo the determinant the operation The result will be printed on the interface screen
