The control rod AP exerts a force F on the sector as shown. Determine both the x-y and n-t components of the force. You

Post by answerhappygod »

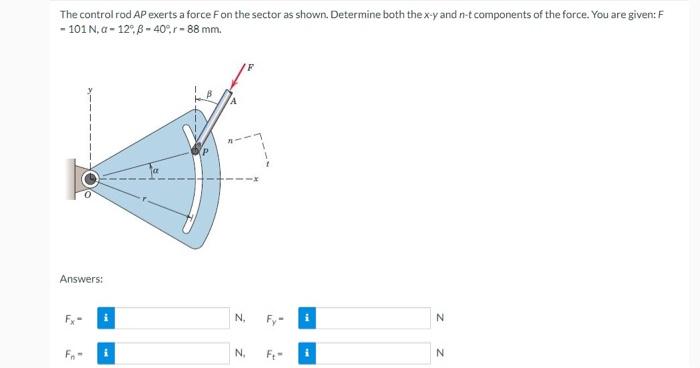

The Control Rod Ap Exerts A Force F On The Sector As Shown Determine Both The X Y And N T Components Of The Force You 1
The Control Rod Ap Exerts A Force F On The Sector As Shown Determine Both The X Y And N T Components Of The Force You 1 (16.95 KiB) Viewed 21 times
The control rod AP exerts a force F on the sector as shown. Determine both the x-y and n-t components of the force. You are given: F -101 N, a-12%, 8-40%,r-88 mm. n Answers: Fx- N₁ Fy- N N. F₁- N i i
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
