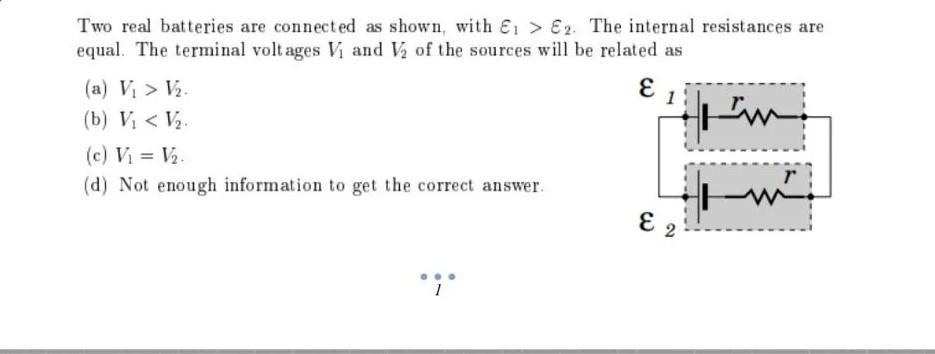

Two real batteries are connected as shown, with E1 > E2. The internal resistances are equal. The terminal volt ages V₁ a

[answerhappygod]

Two Real Batteries Are Connected As Shown With E1 E2 The Internal Resistances Are Equal The Terminal Volt Ages V A 1 (23.9 KiB) Viewed 22 times

if
v1=E1-Ir
v2=E2+Ir
if E1>>E2
so v1 > v2
if E1 > E2 and Ir big
so v2>v1
I need a good answer please
E= emf
Two real batteries are connected as shown, with E1 > E2. The internal resistances are equal. The terminal volt ages V₁ and V₂ of the sources will be related as E 1 (a) V₁ > V₂. I'm (b) V₁ < V₂. (c) V₁ = V₂. (d) Not enough information to get the correct answer. દ 1 2
