An electron moves at 0.140 c as shown in the figure (Eigure 1). There are points: A, B, C, and D 2.50 μm from the electr

[answerhappygod]

1 (32.37 KiB) Viewed 29 times

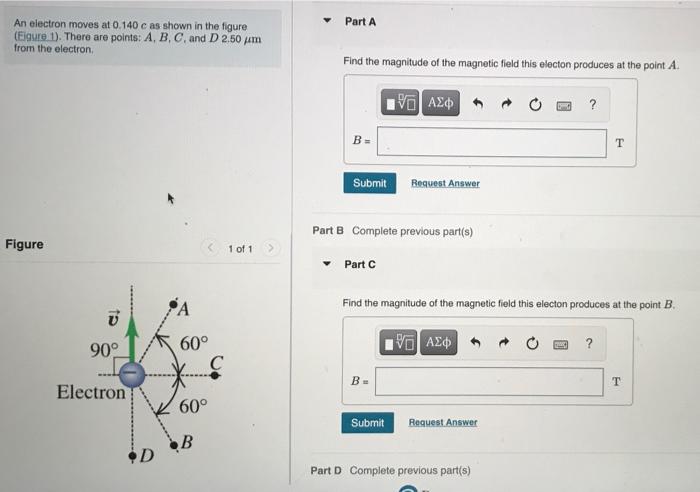

An electron moves at 0.140 c as shown in the figure (Eigure 1). There are points: A, B, C, and D 2.50 μm from the electron. Figure 1 of 1 90° Electron D PA 60° 60° B C Part A Find the magnitude of the magnetic field this electon produces at the point A. 15. ΑΣΦΑ ? T Submit Request Answer Part B Complete previous part(s) Part C Find the magnitude of the magnetic field this electon produces at the point B. VE ΑΣΦ ? B = Submit Request Answer Part D Complete previous part(s) T
