4. A series RLC circuit is connected with the AC voltage as shown in Figure. If the resistance R = 20 ohm; inductance L-

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

4. A series RLC circuit is connected with the AC voltage as shown in Figure. If the resistance R = 20 ohm; inductance L-

Post by answerhappygod »

4 A Series Rlc Circuit Is Connected With The Ac Voltage As Shown In Figure If The Resistance R 20 Ohm Inductance L 1
4 A Series Rlc Circuit Is Connected With The Ac Voltage As Shown In Figure If The Resistance R 20 Ohm Inductance L 1 (16.19 KiB) Viewed 17 times

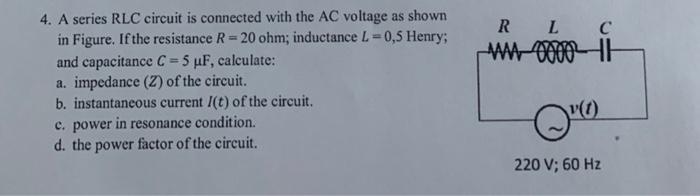

4. A series RLC circuit is connected with the AC voltage as shown in Figure. If the resistance R = 20 ohm; inductance L-0,5 Henry; and capacitance C=5 µF, calculate: a. impedance (2) of the circuit. b. instantaneous current I(t) of the circuit. c. power in resonance condition. d. the power factor of the circuit. RL C www-0000 11 QO 220 V; 60 Hz
