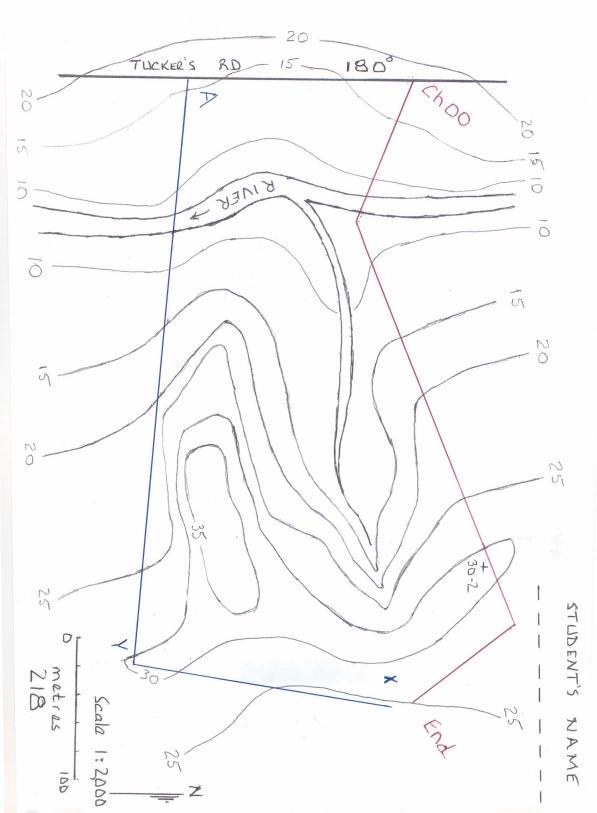

- 20 180 15 Rd Tucker S Choo A 20 20 15 10 15 10 10 River 10 15 20 15 25 20 35 30 2 Student S Name 25 25 End X 25 Sca 1 (44.67 KiB) Viewed 13 times
The bearings and distances are: Ch 00 A: 156.74 - AY: 95-01-50 414.075 Y-X: 8-12-10 183.805 Calculate the coordinates of point X using the survey data above. Also, using your bearings and distances of each straight of your road, calculate the coordinates of the end of the road. Then, using the coordinates calculated for X and the end of the road, calculate the bearing and distance for a survey party to set out the end of your road from point X.
4a) Traverse and Coordinate Calculations (8 Marks) Survey Party's Traverse from SSM to point X Horiz. ΔΕ Δ Ν LINE Bearing Dist E (+) W (-) A-Y Y-X Calculate the Coordinates of the end of your road Horiz. ΔΕ ΔΕΝ LINE Bearing Dist E (+) W (-) N (+) S(-) A - Ch 00 Ch 0 - IP₁ IP₁ -IP₂ IP₂ - END Calculate the bearing and distance to set out the end of your road from point X. Horiz. ΔΕ AN CO-ORD LINE Bearing Dist E (+) W (-) N (+) E X - End N (+) S(-) S(-) CO-ORD INATES N 600.000 400.000 CO-ORD INATES E N 600.000 400.000 INATES N PT. A Y X PT. A Ch 0 IP₁ IP₂ End of Rd PT. X End
4b) Setting Out Data for Curve 1 (8 Marks) Points to be set out must lie at every even 10 or 20m of running chainage and also the crown point. (You may not fill every line in these tables). Point to be pegged Arc Length 8₁ ST Long Chord 0 TP 1 Ch 0 0-00-00 TP 2 Ch Setting Out Data for Curve 2 Points to be set out must lie at every even 10 or 20m of running chainage and also the crown point. Point to be pegged Arc Length 8₁ 8T Long Chord TP 3 Ch 0 0-00-00 0 TP 4 Ch
