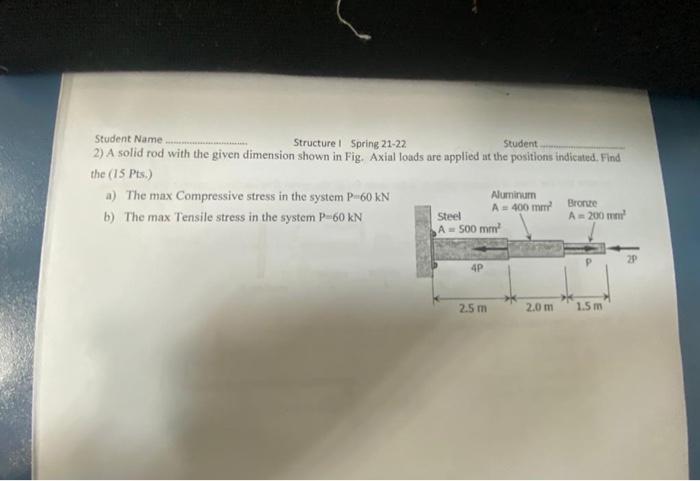

Student Name Structure | Spring 21-22 Student 2) A solid rod with the given dimension shown in Fig. Axial loads are applied at the positions indicated. Find the (15 Pts.) a) The max Compressive stress in the system P-60 kN Aluminum A = 400 mm Bronze A = 200 mm² b) The max Tensile stress in the system P-60 kN Steel A = 500 mm² 4P 2.5 m 1.5 m 2.0 m 2P
