Find The Forces In The Members Of The Truss Shown In Figure 1 The Cross Sectional Area And Young S Modulus Of All Membe 1 (84.91 KiB) Viewed 26 times
Consistent deformation method for truss analysis to find forces in the members of the truss

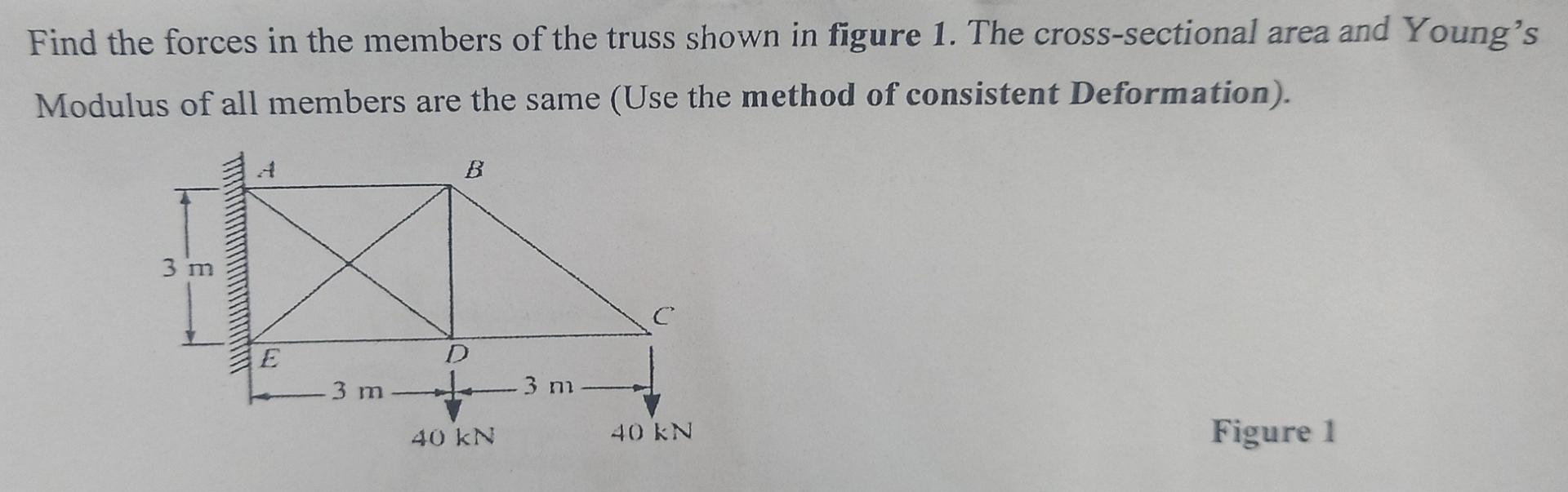

Find the forces in the members of the truss shown in figure 1. The cross-sectional area and Young's Modulus of all members are the same (Use the method of consistent Deformation). 3 m C D Figure 1 40 kN 40 kN E -3 m 3 m
