Task 4: (10 marks) A cylinder is being cut by the two section planes as shown below. Draw the development of the lateral

Post by answerhappygod »

Task 4 10 Marks A Cylinder Is Being Cut By The Two Section Planes As Shown Below Draw The Development Of The Lateral 1
Task 4 10 Marks A Cylinder Is Being Cut By The Two Section Planes As Shown Below Draw The Development Of The Lateral 1 (31.53 KiB) Viewed 25 times

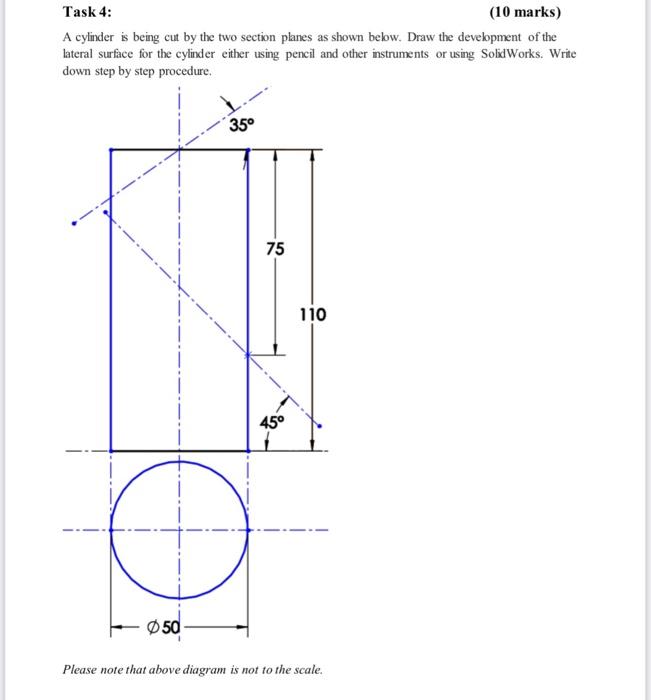

Task 4: (10 marks) A cylinder is being cut by the two section planes as shown below. Draw the development of the lateral surface for the cylinder either using pencil and other instruments or using SolidWorks. Write down step by step procedure. 35⁰ 75 45° 110 50 Please note that above diagram is not to the scale.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
