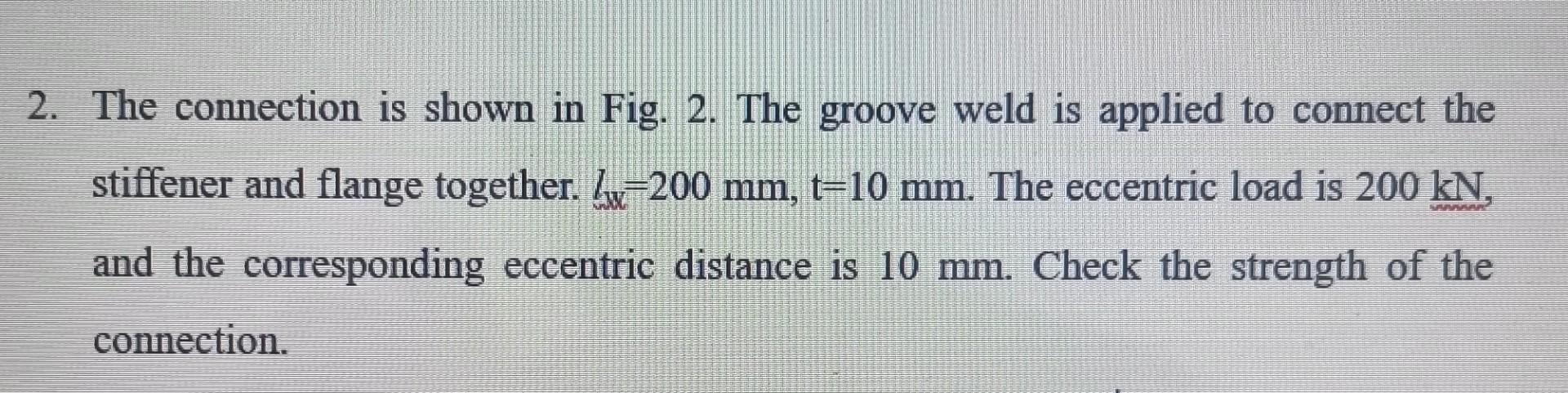

2. The connection is shown in Fig. 2. The groove weld is applied to connect the stiffener and flange together. -200 mm, t=10 mm. The eccentric load is 200 kN, and the corresponding eccentric distance is 10 mm. Check the strength of the connection.
