4. As shown below, the splicing joint of a beam was made with bearing type high-strength bolts. The loads transferred th

Post by answerhappygod »

4 As Shown Below The Splicing Joint Of A Beam Was Made With Bearing Type High Strength Bolts The Loads Transferred Th 1
4 As Shown Below The Splicing Joint Of A Beam Was Made With Bearing Type High Strength Bolts The Loads Transferred Th 1 (323.19 KiB) Viewed 12 times

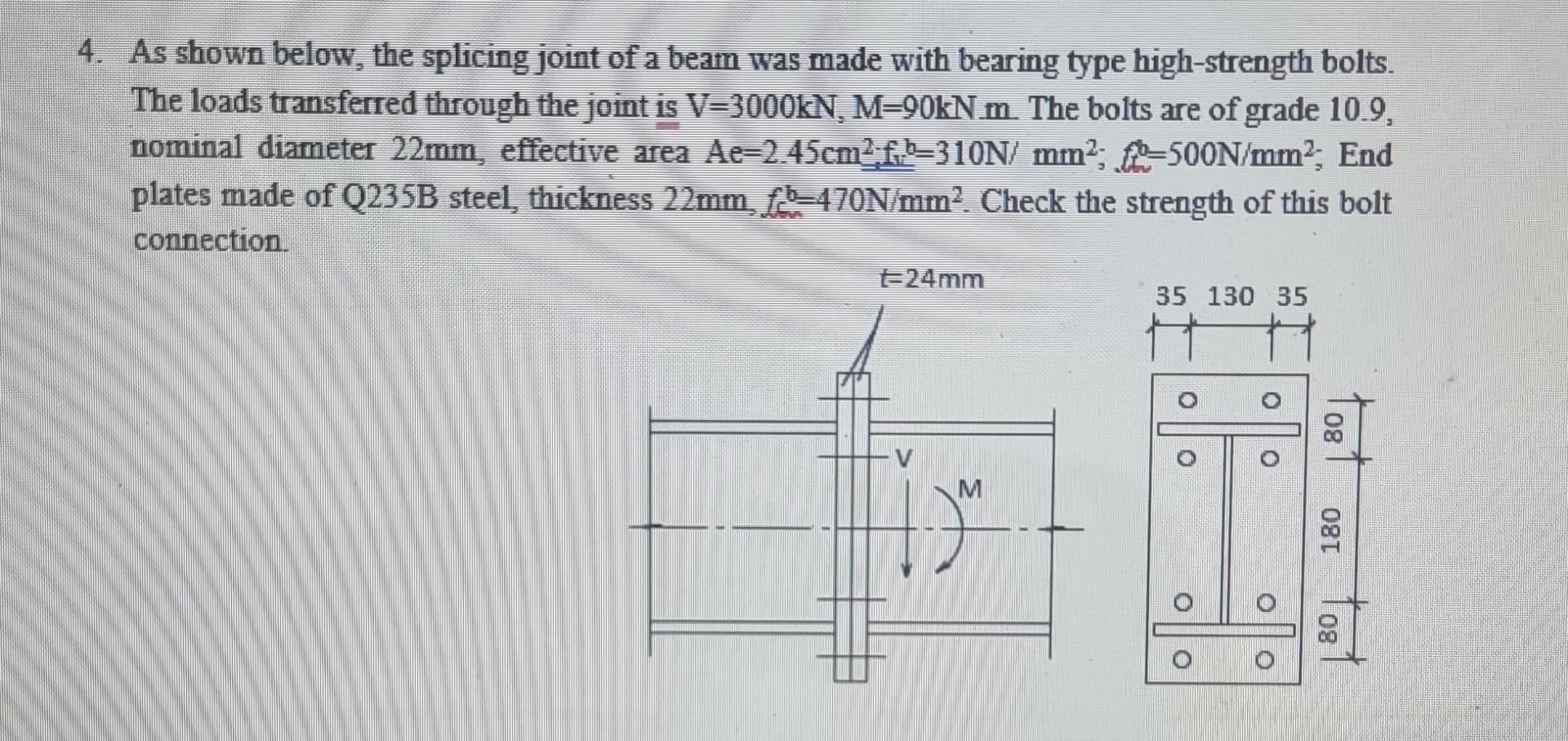

4. As shown below, the splicing joint of a beam was made with bearing type high-strength bolts. The loads transferred through the joint is V-3000kN, M=90kN.m. The bolts are of grade 10.9, nominal diameter 22mm, effective area Ae-2.45cm²:fb-310N/mm²; -500N/mm²; End plates made of Q235B steel, thickness 22mm, fb=470N/mm². Check the strength of this bolt connection t-24mm 35 130 35 M O Ō O O 08 180
