Using the moment distribution method, sketch the bending moment diagram for the frame shown in Figure Q5. The supports a

Post by answerhappygod »

Using The Moment Distribution Method Sketch The Bending Moment Diagram For The Frame Shown In Figure Q5 The Supports A 1
Using The Moment Distribution Method Sketch The Bending Moment Diagram For The Frame Shown In Figure Q5 The Supports A 1 (33.11 KiB) Viewed 15 times

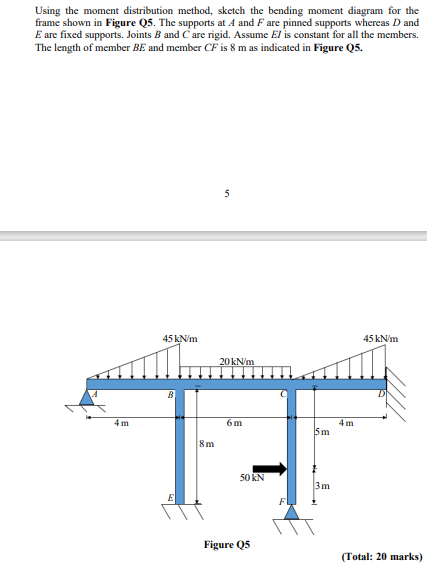

Using the moment distribution method, sketch the bending moment diagram for the frame shown in Figure Q5. The supports at A and F are pinned supports whereas D and E are fixed supports. Joints B and C are rigid. Assume El is constant for all the members. The length of member BE and member CF is 8 m as indicated in Figure Q5. 45 kN/m 45 kN/m 8m 20 kN/m 6m 50 kN Figure Q5 5m 3m 4m (Total: 20 marks)
