A just rigid truss is with 8 pins represented by capital letters is shown in the figure. 13 bars are located between the

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A just rigid truss is with 8 pins represented by capital letters is shown in the figure. 13 bars are located between the

Post by answerhappygod »

A Just Rigid Truss Is With 8 Pins Represented By Capital Letters Is Shown In The Figure 13 Bars Are Located Between The 1
A Just Rigid Truss Is With 8 Pins Represented By Capital Letters Is Shown In The Figure 13 Bars Are Located Between The 1 (54.77 KiB) Viewed 13 times

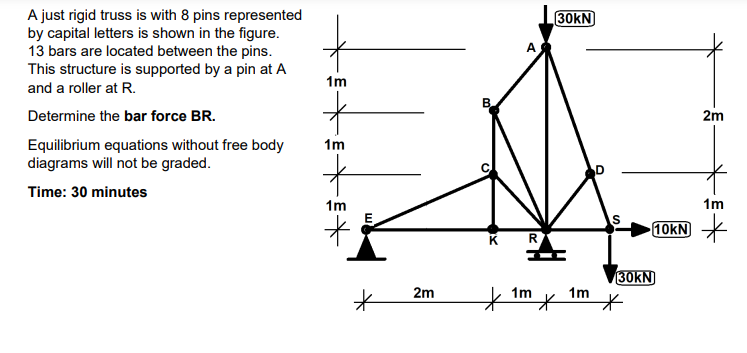

A just rigid truss is with 8 pins represented by capital letters is shown in the figure. 13 bars are located between the pins. This structure is supported by a pin at A and a roller at R. Determine the bar force BR. Equilibrium equations without free body diagrams will not be graded. Time: 30 minutes 1m 1m 1m * 2m B. K R 1m 30KN * 1m S 30KN * 10KN 2m 1m
