For the beam and loading shown, draw the shear force and bending moment Diagram and determine the maximum normal stress

Post by answerhappygod »

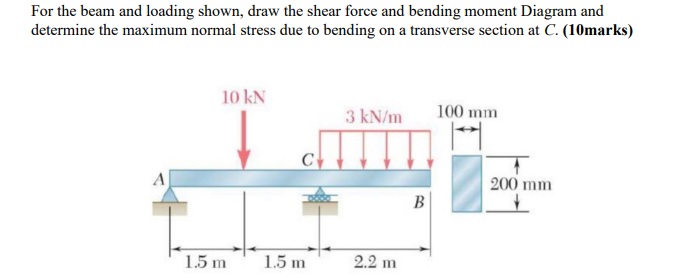

For The Beam And Loading Shown Draw The Shear Force And Bending Moment Diagram And Determine The Maximum Normal Stress 1
For The Beam And Loading Shown Draw The Shear Force And Bending Moment Diagram And Determine The Maximum Normal Stress 1 (82.75 KiB) Viewed 19 times
PLEASE SHOW ALL CALCULATIONS
For the beam and loading shown, draw the shear force and bending moment Diagram and determine the maximum normal stress due to bending on a transverse section at C. (10marks) بسایت A 10 kN 1.5 m C 1.5 m 3 kN/m 100 mm 2.2 m B 200 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
