A Steel Rod And A Brass Rod Both With Cylindrical Cross Sections Are Connected At C And Constrained By Rigid Supports 1 (82.39 KiB) Viewed 27 times
PLEASE SHOW ALL CALCULATIONS
(NEED DETAILED SOLUTION)

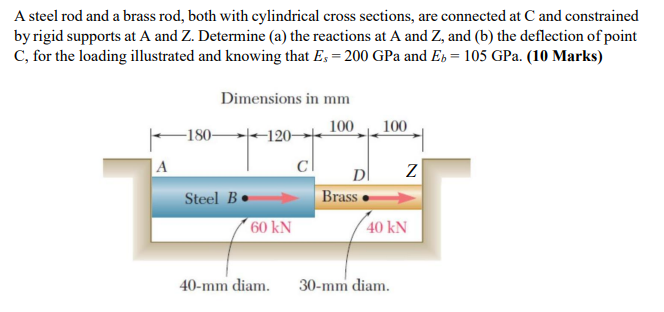

A steel rod and a brass rod, both with cylindrical cross sections, are connected at C and constrained by rigid supports at A and Z. Determine (a) the reactions at A and Z, and (b) the deflection of point C, for the loading illustrated and knowing that Es = 200 GPa and Eb = 105 GPa. (10 Marks) Dimensions in mm 100 100 -180- Steel Be 40-mm diam. A 120- 60 KN D Brass Z 40 kN 30-mm diam.
