Q2 (b) The channel section shown in Fig. 5 below is used as a cantilever beam of span 300 cm. The plane of the load of c

[answerhappygod]

Q2 B The Channel Section Shown In Fig 5 Below Is Used As A Cantilever Beam Of Span 300 Cm The Plane Of The Load Of C 1 (158.02 KiB) Viewed 13 times

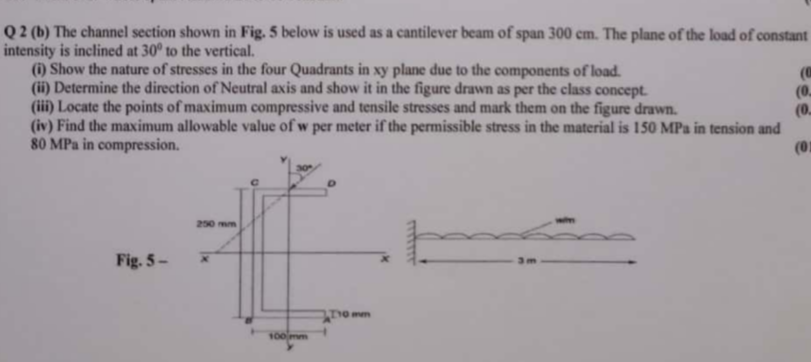

Q2 (b) The channel section shown in Fig. 5 below is used as a cantilever beam of span 300 cm. The plane of the load of constant intensity is inclined at 30° to the vertical. (i) Show the nature of stresses in the four Quadrants in xy plane due to the components of load. (0 (ii) Determine the direction of Neutral axis and show it in the figure drawn as per the class concept. (iii) Locate the points of maximum compressive and tensile stresses and mark them on the figure drawn. (iv) Find the maximum allowable value of w per meter if the permissible stress in the material is 150 MPa in tension and 80 MPa in compression. (0. (0. (01 250 mm Fig. 5- 3m Thomm 100 mm
