10. A beam is constructed of 3 steel plates, each with thickness 10mm, welded to form an irregular l-section as shown in

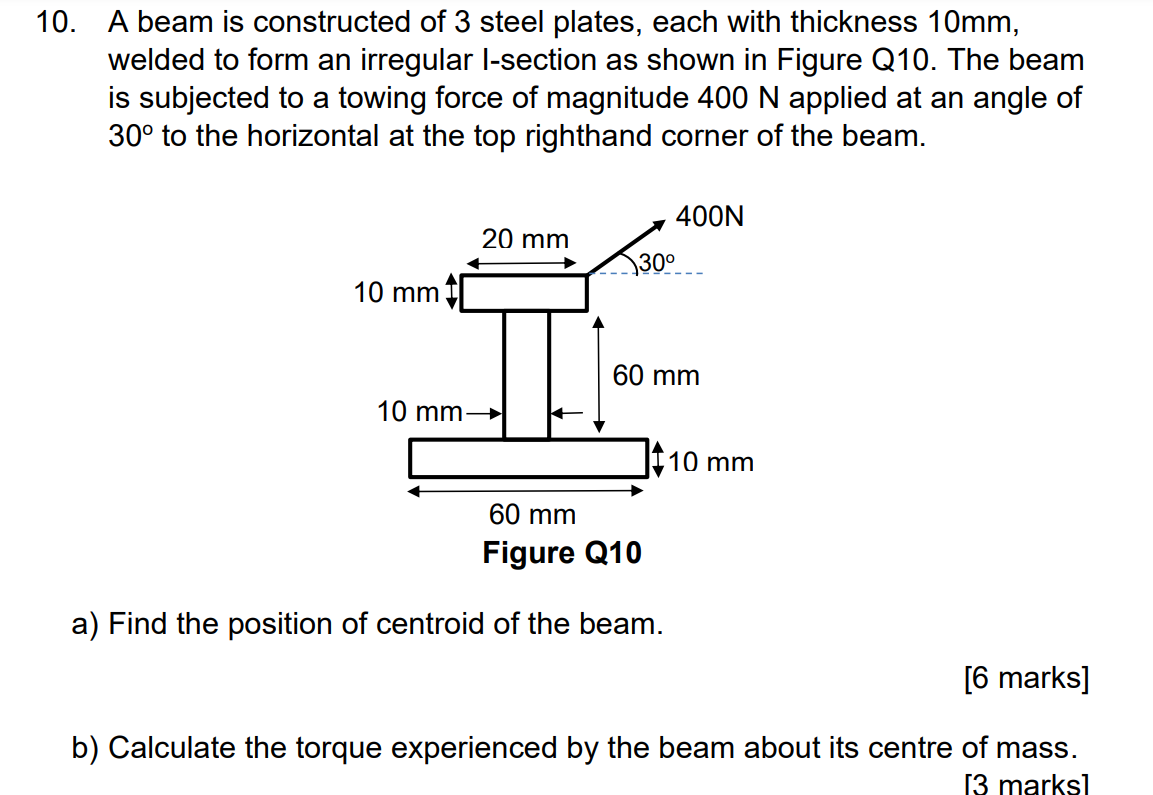

10. A beam is constructed of 3 steel plates, each with thickness 10mm, welded to form an irregular l-section as shown in Figure Q10. The beam is subjected to a towing force of magnitude 400 N applied at an angle of 30° to the horizontal at the top righthand corner of the beam. 400N 20 mm 30⁰ I 10 mm- 60 mm Figure Q10 a) Find the position of centroid of the beam. [6 marks] b) Calculate the torque experienced by the beam about its centre of mass. [3 marks] 10 mm 60 mm 10 mm
