6. A compound beam ABCDE consists of two beams connected by a hinge at C. The beam is supported by a spring at D and car

[answerhappygod]

6 A Compound Beam Abcde Consists Of Two Beams Connected By A Hinge At C The Beam Is Supported By A Spring At D And Car 1 (59.73 KiB) Viewed 36 times

I HAVE SEEN OTHER ANSWERS OF THIS ON answers BUT PLEASE DO NOT
COPY AS SOME OF THE ANSWERS ARE INCORRECT.
PLEASE DO THE QUESTION ONLY IF YOU KNOW THE METHOD WELL. THANK
YOU SO MUCH.

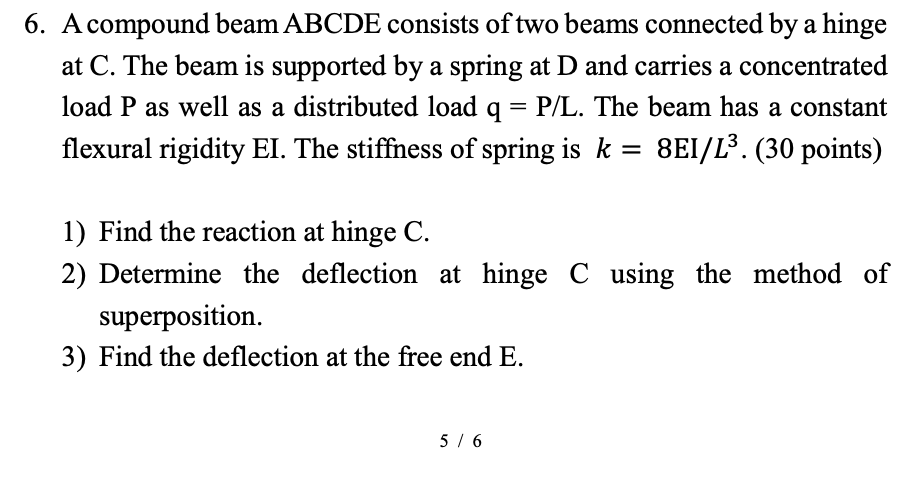

6. A compound beam ABCDE consists of two beams connected by a hinge at C. The beam is supported by a spring at D and carries a concentrated load P as well as a distributed load q = P/L. The beam has a constant flexural rigidity EI. The stiffness of spring is k = 8EI/L³. (30 points) 1) Find the reaction at hinge C. 2) Determine the deflection at hinge C using the method of superposition. 3) Find the deflection at the free end E. 5/6
A 7/d= b L-2 B 72 C L-2 12 P
