Lightship is 7850 ton, LBP is 180m and LCG is 7.85m The cargo shown below was loaded onto this ship and at the end of the loading was determined as Mean draught= 10.12 m, LCF-0, LCB=-3.60 m and MCTIcm-843 ons/meter.Calculate Fwd and Aft drafts with trim at the end of loading.
Nol Hold: 3500 ton LCG: -65.40 m No3 Hold: 8700 ton LCG: -30.70 m
No5 Hold: 8900 ton LCG: 20.25 m No7 Hold: 4100 ton LCG: 41.60 m
A) Trim: 0.611 m. Fwd D: 9.814
m Aft D: 10.425 m
B) Trim: 0.420 m Fwd D: 9.91 m
Aft D: 10.33 m
C) Trim: 0.549 m Fwd D: 9.845 m Aft D: 10.395 m
D) Trim: 0.544 m Fwd D: 9.848 m
Aft D: 10.392 m
E) Trim: 0.551 m Fwd D: 9.855 m Aft D: 10.401 m
the course ne ia ship stabilty
hi please help ineed fast hlp as u can is hard

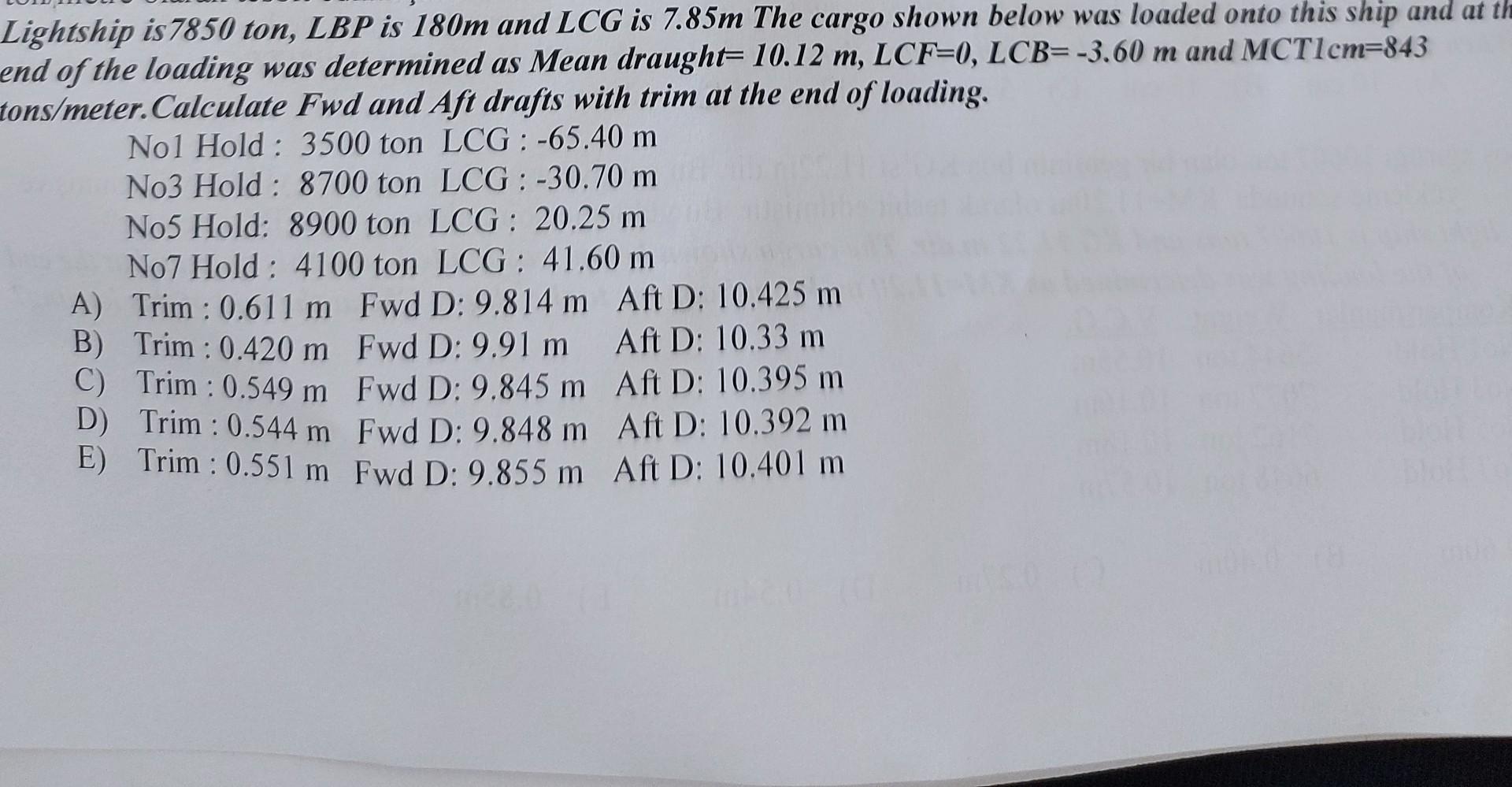

Lightship Is 7850 Ton Lbp Is 180m And Lcg Is 7 85m The Cargo Shown Below Was Loaded Onto This Ship And At The End Of Th 1 (172.87 KiB) Viewed 15 times
Lightship is 7850 ton, LBP is 180m and LCG is 7.85m The cargo shown below was loaded onto this ship and at th end of the loading was determined as Mean draught= 10.12 m, LCF-0, LCB= -3.60 m and MCT1cm=843 tons/meter. Calculate Fwd and Aft drafts with trim at the end of loading. No1 Hold: 3500 ton LCG: -65.40 m No3 Hold: 8700 ton LCG: -30.70 m No5 Hold: 8900 ton LCG: 20.25 m No7 Hold: 4100 ton LCG: 41.60 m A) Trim: 0.611 m Fwd D: 9.814 m B) Fwd D: 9.91 m Fwd D: 9.845 m Aft D: 10.425 m Aft D: 10.33 m Aft D: 10.395 m C) Trim: 0.420 m Trim: 0.549 m Trim: 0.544 m E) Trim: 0.551 m D) Fwd D: 9.848 m Aft D: 10.392 m Fwd D: 9.855 m Aft D: 10.401 m
