2. A thin plate (E = 70 GPa, v=0.3, yield stress: 220 MPa) is subject to a force of 65 kN, resulting in the following st
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2. A thin plate (E = 70 GPa, v=0.3, yield stress: 220 MPa) is subject to a force of 65 kN, resulting in the following st

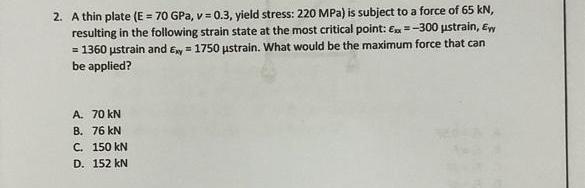

2. A thin plate (E = 70 GPa, v=0.3, yield stress: 220 MPa) is subject to a force of 65 kN, resulting in the following strain state at the most critical point: Ex-300 ustrain, Ew = 1360 µstrain and Exy = 1750 μstrain. What would be the maximum force that can be applied? A. 70 KN B. 76 kN R C. 150 KN D. 152 KN
