6 S 2 4 Bearing Arm Arm 2 Figure 1 Planetary Gearset For Question 2 Arm Question 2 2 Pts Figure 1 Shows A Compound Pl 1 (37.42 KiB) Viewed 9 times

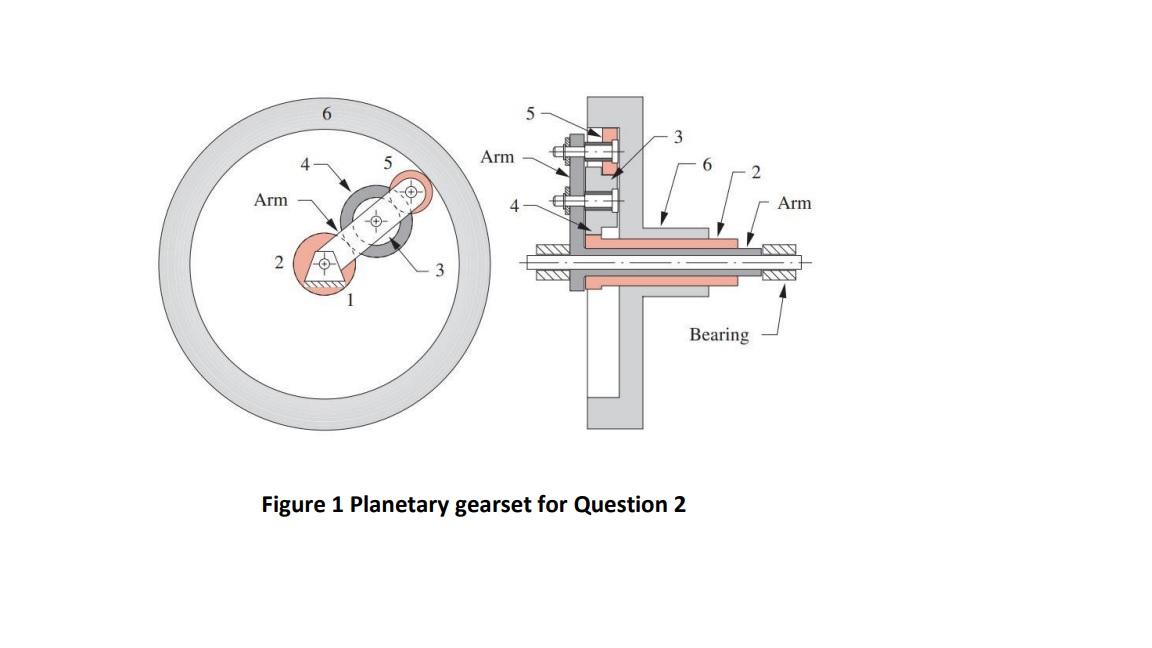

6 S 2 4 $ Bearing Arm Arm 2 Figure 1 Planetary gearset for Question 2 Arm Question 2 2 pts Figure-1 shows a compound planetary gear train (not to scale). The data for numbers of teeth and input, output velocities are: N₂-30, N3-20, N4=40, N5=50, N6-160, w2=-50 rad/sec and w6-0 rad/sec. Find the angular velocity of the arm (warm). a. 5.2 b. 19.1 c. 25.9 d. 12.5 C b d a O
