Figure 3: Prismatic bar AB Question Four A solid steel bar of circular cross section as shown in Figure 4 has a diameter

[answerhappygod]

Figure 3 Prismatic Bar Ab Question Four A Solid Steel Bar Of Circular Cross Section As Shown In Figure 4 Has A Diameter 1 (24.83 KiB) Viewed 21 times

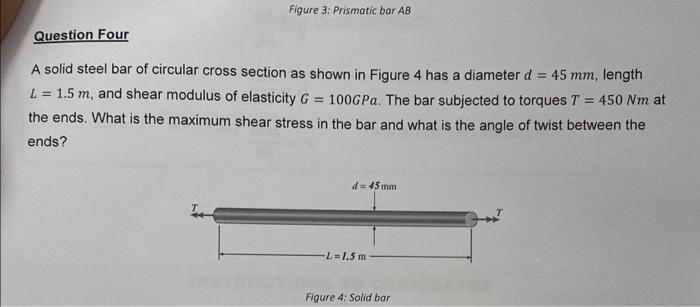

Figure 3: Prismatic bar AB Question Four A solid steel bar of circular cross section as shown in Figure 4 has a diameter d = 45 mm, length L = 1.5 m, and shear modulus of elasticity G = 100GPa. The bar subjected to torques T = 450 Nm at the ends. What is the maximum shear stress in the bar and what is the angle of twist between the ends? d=45mm T -L=1.5 m Figure 4: Solid bar
