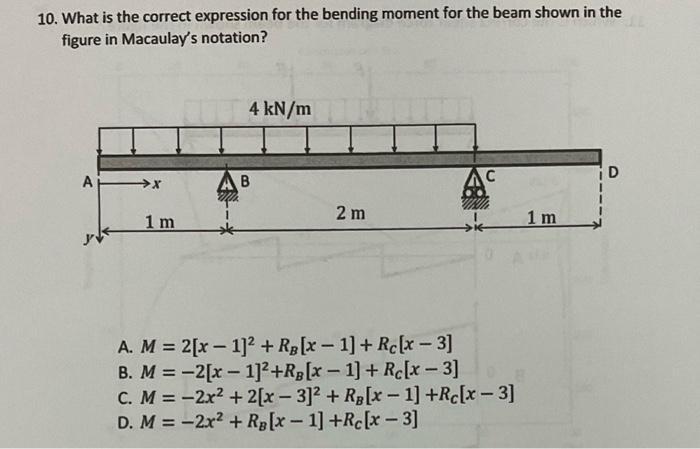

10. What is the correct expression for the bending moment for the beam shown in the figure in Macaulay's notation? 4 kN/
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
10. What is the correct expression for the bending moment for the beam shown in the figure in Macaulay's notation? 4 kN/
10. What is the correct expression for the bending moment for the beam shown in the figure in Macaulay's notation? 4 kN/m C D A →→→X B 2 m 1 m A. M = 2[x-1]2 + RB[x - 1] + Rc[x - 3] B. M = -2[x-1]²+RB [x - 1] + Rc[x - 3] C. M = -2x² + 2[x - 3]2+ Rg[x - 1] +Rc[x - 3] D. M = -2x² + Rg[x - 1] +Rc [x - 3] 1 m
