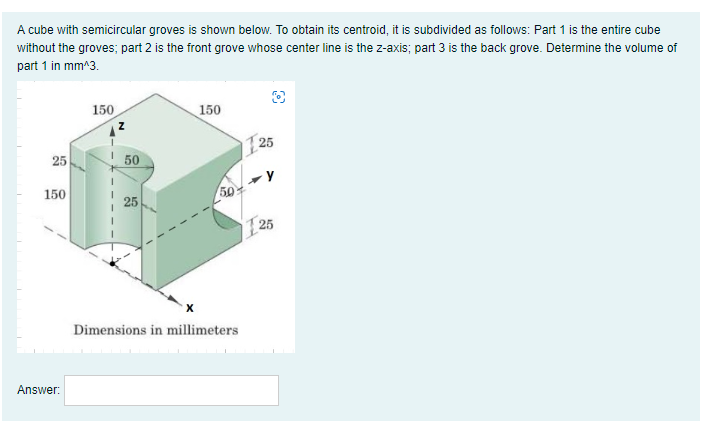

A cube with semicircular groves is shown below. To obtain its centroid, it is subdivided as follows: Part 1 is the entir

[answerhappygod]

A Cube With Semicircular Groves Is Shown Below To Obtain Its Centroid It Is Subdivided As Follows Part 1 Is The Entir 1 (73.52 KiB) Viewed 14 times

b) Determine the volume of each of the groves (part 2 or
part 3) in mm^3.
c) Determine the y-centroid of part 2 in mm.
d) Determine the y-centroid of part 3 in mm.
e) Determine the x-centroid of the composite body in
mm.
f) Determine the y-centroid of the composite body in
mm.
g) Determine the z-centroid of the composite body in
mm.
h) The centroid in one of the axes was trivial because of
symmetry. Which axis was it and where was the symmetry?
a.
z-axis; symmetry in x-z plane
b.
z-axis; symmetry in y-z plane
c.
y-axis; symmetry in x-y plane
d.
z-axis; symmetry in x-y plane
I URGENTLY NEED THESE ANSWERS WITHIN AN HOUR
e.
x-axis; symmetry in x-z plane
f.
y-axis; symmetry in y-z plane
g.
y-axis; symmetry in x-z plane
h.
x-axis; symmetry in y-z plane
i.
It's not possible to know - there is no symmetry in any of the
axes or planes!
j.
x-axis; symmetry in x-y plane
A cube with semicircular groves is shown below. To obtain its centroid, it is subdivided as follows: Part 1 is the entire cube without the groves; part 2 is the front grove whose center line is the z-axis; part 3 is the back grove. Determine the volume of part 1 in mm^3. 150 150 25 25 y 150 Answer: 50 25 Dimensions in millimeters 50 25
