3 Air flows through converging-diverging nozzle with Ae = 0.001 m². The air has To = = 350 K, Po = 1 MPa (abs). The desi

Post by answerhappygod »

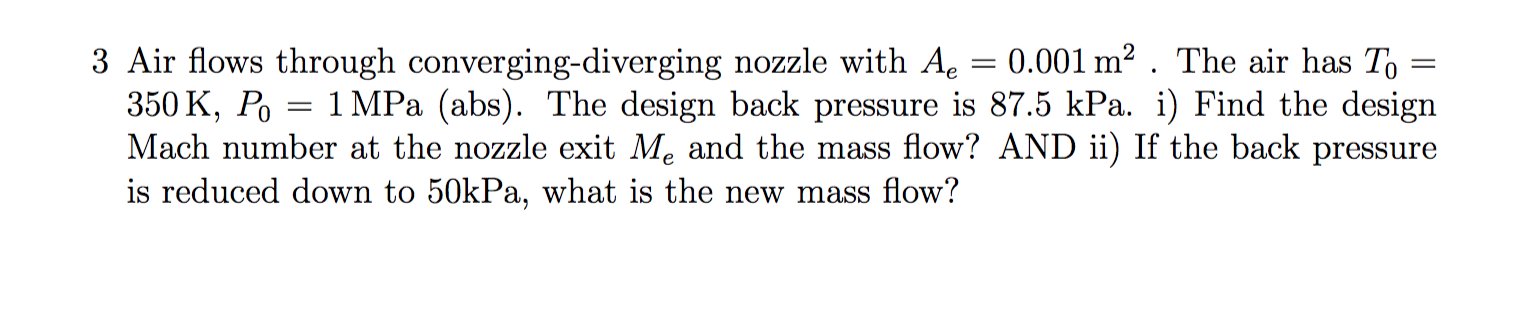

3 Air Flows Through Converging Diverging Nozzle With Ae 0 001 M The Air Has To 350 K Po 1 Mpa Abs The Desi 1
3 Air Flows Through Converging Diverging Nozzle With Ae 0 001 M The Air Has To 350 K Po 1 Mpa Abs The Desi 1 (90.16 KiB) Viewed 16 times
3 Air flows through converging-diverging nozzle with Ae = 0.001 m². The air has To = = 350 K, Po = 1 MPa (abs). The design back pressure is 87.5 kPa. i) Find the design Mach number at the nozzle exit M. and the mass flow? AND ii) If the back pressure is reduced down to 50kPa, what is the new mass flow?
