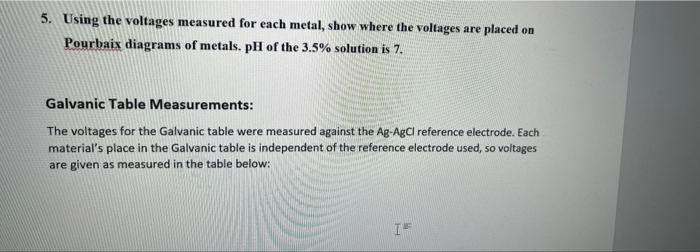

5. Using the voltages measured for each metal, show where the voltages are placed on Pourbaix diagrams of metals. pH of the 3.5% solution is 7. Galvanic Table Measurements: The voltages for the Galvanic table were measured against the Ag-AgCl reference electrode. Each material's place in the Galvanic table is independent of the reference electrode used, so voltages are given as measured in the table below: IF

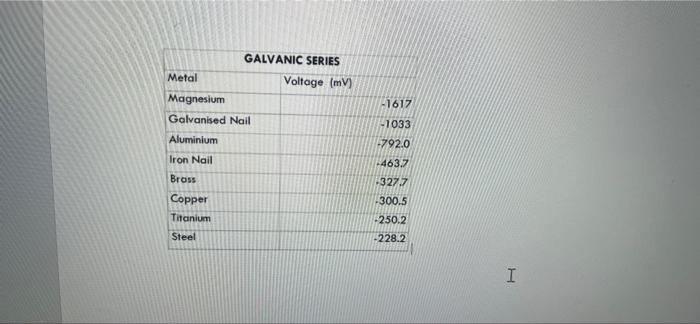

GALVANIC SERIES Metal Magnesium Galvanised Nail Aluminium Iron Nail Brass Copper Titanium Steel Voltage (mV) -1617 -1033 -792.0 -463.7 -327.7 -300.5 -250.2 -228.2 I
