Question one Fig. Q1 shows a beam which overhangs its supports at both ends. Calculate for the loads given, the values o

[answerhappygod]

Question One Fig Q1 Shows A Beam Which Overhangs Its Supports At Both Ends Calculate For The Loads Given The Values O 1 (20.54 KiB) Viewed 13 times

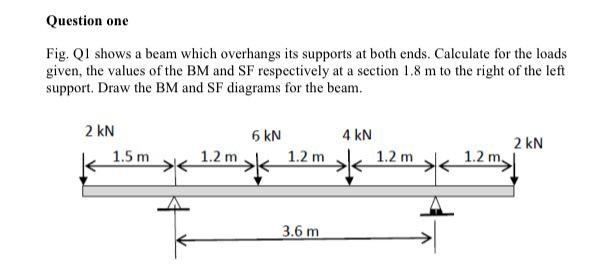

Question one Fig. Q1 shows a beam which overhangs its supports at both ends. Calculate for the loads given, the values of the BM and SF respectively at a section 1.8 m to the right of the left support. Draw the BM and SF diagrams for the beam. 2 kN 6 kN 4 kN 2 kN 1.5 m 1.2 m 1.2 m 1.2 m 1.2 m * >< 3.6 m
