Material Strengths: Fy= 345 MPa. Fu - 483 MPa The channel (C310X30.8) is connected with five-M20 bolts as shown. The pit

[answerhappygod]

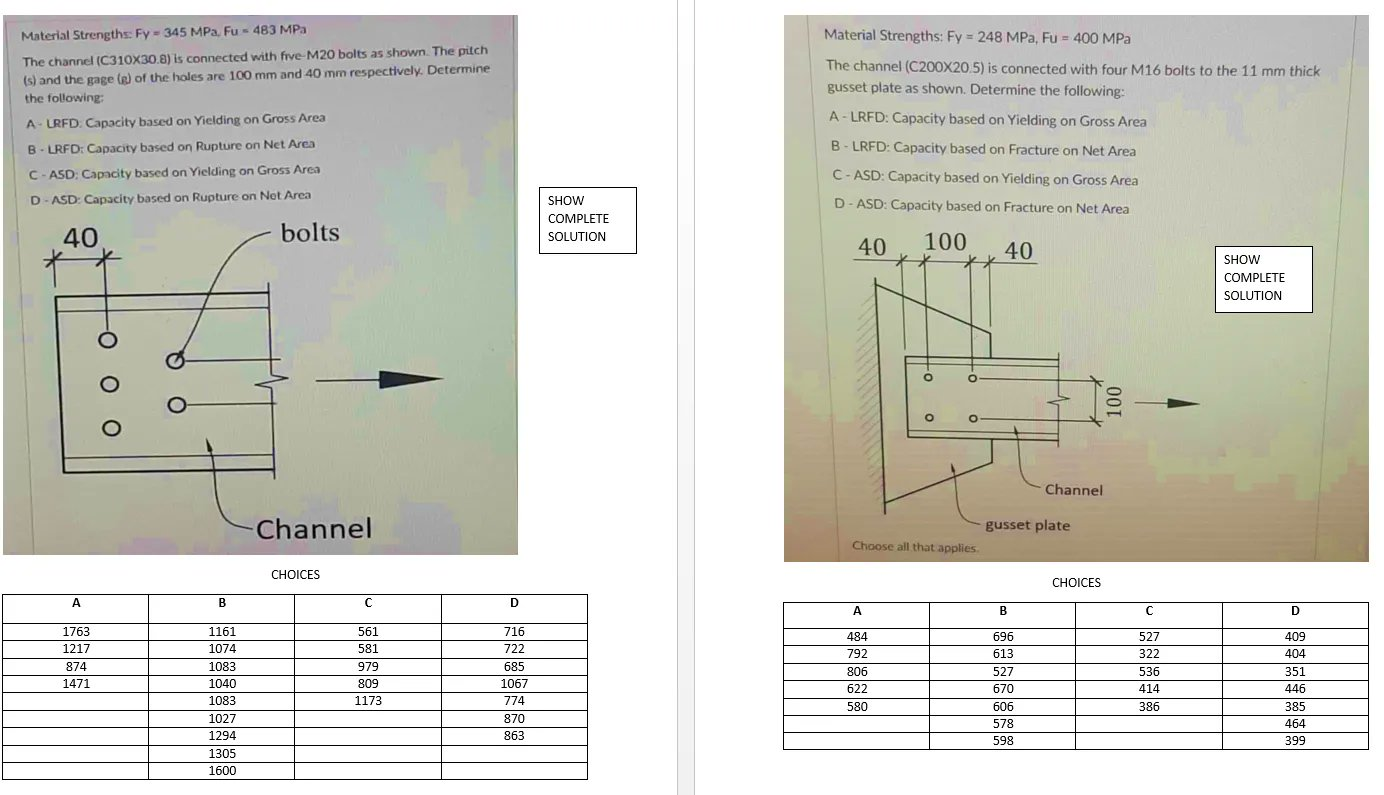

Material Strengths Fy 345 Mpa Fu 483 Mpa The Channel C310x30 8 Is Connected With Five M20 Bolts As Shown The Pit 1 (718.25 KiB) Viewed 14 times

Material Strengths: Fy= 345 MPa. Fu - 483 MPa The channel (C310X30.8) is connected with five-M20 bolts as shown. The pitch (s) and the gage (g) of the holes are 100 mm and 40 mm respectively. Determine the following: A-LRFD: Capacity based on Yielding on Gross Area B-LRFD: Capacity based on Rupture on Net Area C-ASD: Capacity based on Yielding on Gross Area D-ASD: Capacity based on Rupture on Not Area 40 bolts Channel CHOICES C 561 581 979 809 1173 A 1763 1217 874 1471 -ооо B 1161 1074 1083 1040 1083 1027 1294 1305 1600 D 716 722 685 1067 774 870 863 SHOW COMPLETE SOLUTION Material Strengths: Fy= 248 MPa, Fu = 400 MPa The channel (C200X20.5) is connected with four M16 bolts to the 11 mm thick gusset plate as shown. Determine the following: A-LRFD: Capacity based on Yielding on Gross Area B-LRFD: Capacity based on Fracture on Net Area C-ASD: Capacity based on Yielding on Gross Area D-ASD: Capacity based on Fracture on Net Area 40 100 40 SHOW COMPLETE SOLUTION O O O Choose all that applies. A 484 792 806 622 580 Channel gusset plate B 696 613 527 670 606 578 598 CHOICES 100 C 527 322 536 414 386 D 409 404 351 446 385 464 399
