20 m 8 m Water 2 D₂ = ? D₁ 1 50 mm 2. Flow is ideal & steady through the pipe shown in the figure. Using a mercury U-tub
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
20 m 8 m Water 2 D₂ = ? D₁ 1 50 mm 2. Flow is ideal & steady through the pipe shown in the figure. Using a mercury U-tub

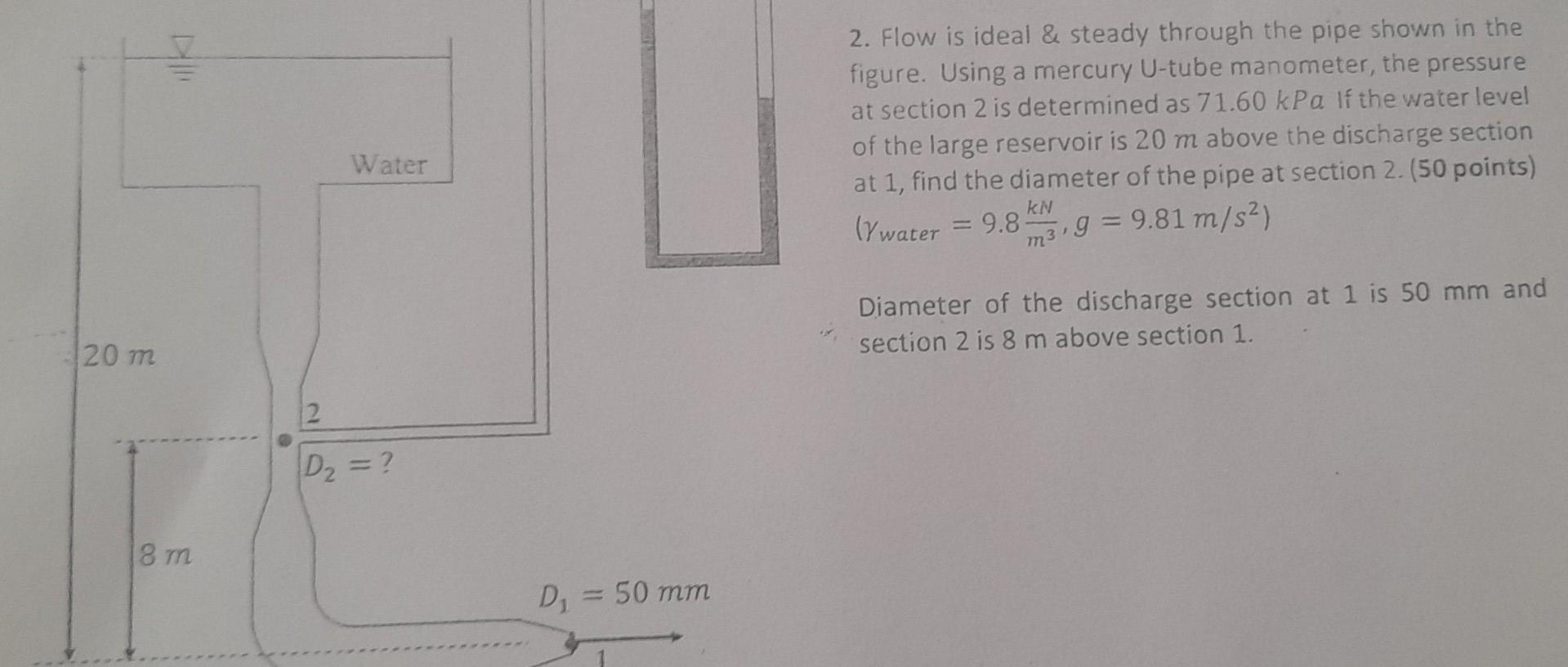

20 m 8 m Water 2 D₂ = ? D₁ 1 50 mm 2. Flow is ideal & steady through the pipe shown in the figure. Using a mercury U-tube manometer, the pressure at section 2 is determined as 71.60 kPa If the water level of the large reservoir is 20 m above the discharge section at 1, find the diameter of the pipe at section 2. (50 points) (Ywater = 9.8 9 = 9.81 m/s²) KN m31 Diameter of the discharge section at 1 is 50 mm and section 2 is 8 m above section 1.
