Find reaction forces (Ra, Rb, Rc) (20%) and draw the shear diagram (V) and moment diagram (M) (5%). (Hint: choose Ra as

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Find reaction forces (Ra, Rb, Rc) (20%) and draw the shear diagram (V) and moment diagram (M) (5%). (Hint: choose Ra as

Post by answerhappygod »

Find Reaction Forces Ra Rb Rc 20 And Draw The Shear Diagram V And Moment Diagram M 5 Hint Choose Ra As 1
Find Reaction Forces Ra Rb Rc 20 And Draw The Shear Diagram V And Moment Diagram M 5 Hint Choose Ra As 1 (56.58 KiB) Viewed 25 times

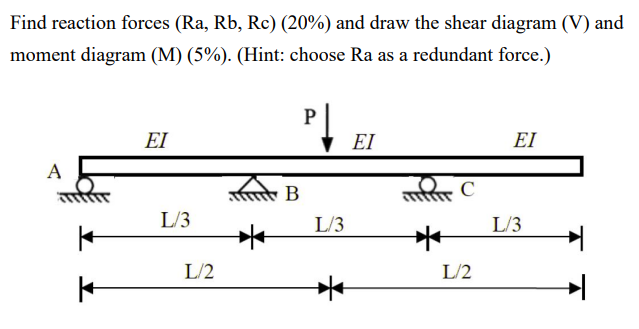

Find reaction forces (Ra, Rb, Rc) (20%) and draw the shear diagram (V) and moment diagram (M) (5%). (Hint: choose Ra as a redundant force.) P EI ΕΙ ΕΙ A aff C с ➜ ➜ L/3 L/2 * B L/3 * L/2 L/3
